NG # 09330009-HW-BRAY-009
V-Port Rotary Control Valve – V-Control Series combines the zero-leakage shutoff of a ball valve with the precise flow regulation of a characterized control valve. Its V-port geometry provides high rangeability, fast response, and efficient flow control for temperature, steam, level, pressure, and other industrial applications.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe V-Control Series is designed for precise industrial flow regulation, with 15°, 30°, 60°, and 90° V-port configurations plus custom port geometries. Available from NPS ¼ to 12 (DN 6–300), it supports ASME Class 150–600 and EN 1092 PN10–40 pressure classes, with temperatures from -46°C to 343°C. CF8M stainless steel and WCB carbon steel bodies, multiple seat options, and Class VI shutoff provide flexible performance across demanding control applications.
Size Range: NPS ¼–12, DN6–DN300
Body Materials: Stainless Steel (CF8M), Carbon Steel (WCB)
Temperature Range: -50°F to 650°F (-46°C to 343°C)
Maximum Operating Pressure: ASME Class 150, 300, 600; EN 1092 PN10, PN16, PN25, PN40
Seat Materials: Tek-Fil®, PEEK, RPTFE, TFM, Metal
Shutoff Rating: Class VI
Ball Materials: 316 Stainless Steel (CF8M)
Body Style: Threaded, Socket Weld, Butt Weld, Flanged End
Design Standard: ASME B16.34
Testing Standard: API 598, FCI 70-2
Ports: 15° V-Port, 30° V-Port, 60° V-Port, 90° V-Port, Custom Slotted Port, Custom V-Port
Certifications: API 607, ATEX, NACE MR0175, PED, PE(S)R, SIL, TR CU
Face-to-Face: ASME B16.10
Stem Materials: ASTM A479 Type 316, ASTM A564 Type 17-4PH, ASTM A182 Type F51
Applications: Temperature Control, Flow Control, Steam Control, Cavitation, Level Control & pH Service

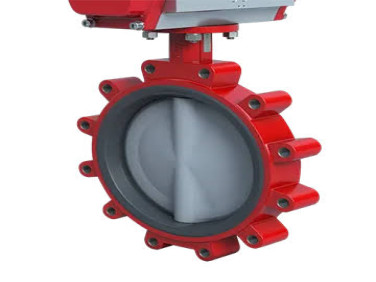

Resilient Seated Butterfly Valve – Series 35/36
