3M Fall Protection 8530690 FlexiGuard Trailer Mount System, DOT Rated, Adjustable Height 10 ft. - 21.5 ft.

  • NG # 0820-HW-3M-074

  • MF # 8530690

  • SKU # 8530690

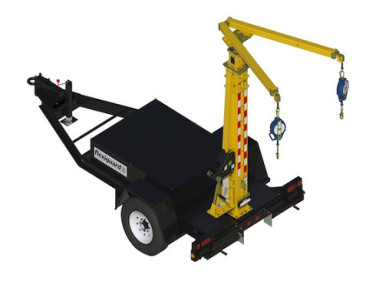

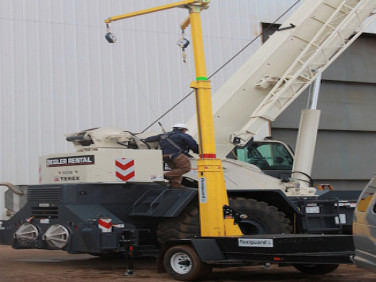

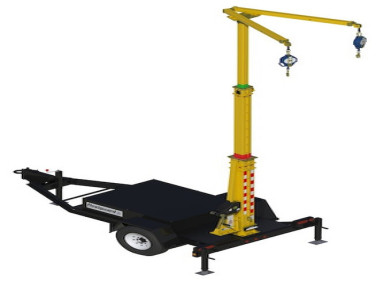

The 3M DBI-SALA FlexiGuard™ Trailer Mount System (Mfg# 8530690) is a mobile, heavy-duty overhead fall arrest anchor system mounted on a DOT-rated trailer frame. Designed for transportation across job sites or public highways, it provides a portable vertical anchorage point for workers servicing elevated vehicles, flatbed trailers, railcars, and large machinery where fixed overhead structures are unavailable.

Manufactured By :
3M
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

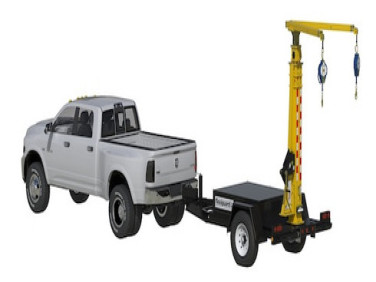

The Flexiguard™ Trailer Mount System is a DOT rated, portable system that attaches to a Class III hitch for transport on a truck or service vehicle. This system incorporates an integrated counterweight to ensure stand-alone use for up to 2-users. This system provides two height adjustable anchorage points 11 ft. – 21.5 ft. (3.0m – 6.6m) with a 4.5 ft. (1.4m) offset and is ANSI and OSHA compliant. DBI-SALA® has created a proven process for developing unique solutions. Whether it’s an existing or modified product, or an entirely new design, Flexiguard™ always meets the requirements of your specific application. Each custom solution is driven by our customers’ needs and is dependent on the industry, environment and specific design constraints, including government standards. We also have numerous pre-engineered systems that may be a perfect solution to your fall protection challenge. All of our systems are extremely durable and built to last with world-class quality, materials and workmanship. They are unique solutions to unique challenges, and fall protection you can trust.

Specification

SpecificationDetails
Manufacturer3M DBI-SALA
Model / Part Number8530690
Product SeriesFlexiGuard™ Trailer Mount Systems
Anchor Height Range$10\text{ ft.}$ – $21.5\text{ ft.}$ ($3.0\text{ m}$ – $6.6\text{ m}$) Adjustable
Boom / Anchor Offset$4.5\text{ ft.}$ ($1.4\text{ m}$)
Capacity2 Workers (Max 310 lbs / 141 kg per person)
Trailer CertificationDOT Highway Rated (Includes lights, brake system, and hitch receiver)
Structure MaterialPowder-Coated Steel & Heavy-Duty Aluminum Components
System ElevationManual Hand Winch (Drill-assist compatible)
StabilizationHeavy-Duty Outrigger Leveling Jacks with Bubble Levels
Standards & ComplianceOSHA 1910.140, OSHA 1926.502, ANSI Z359.6
