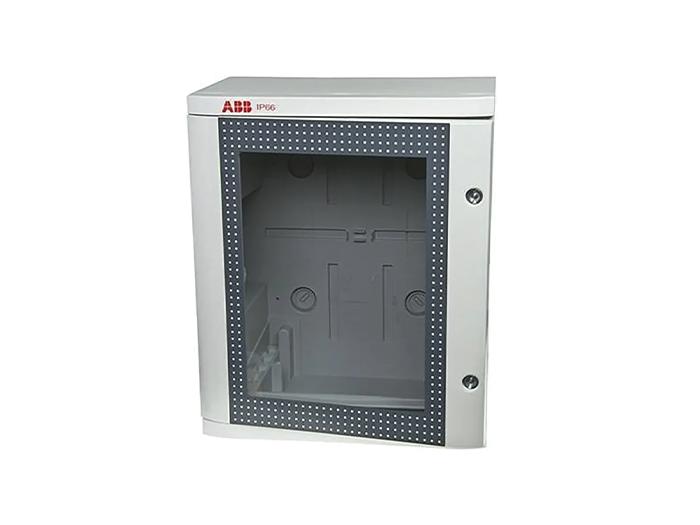

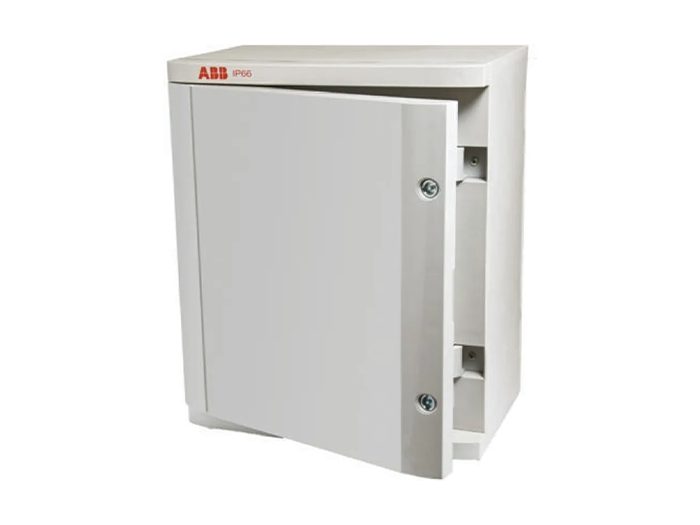

ABB 1SL02 Series Thermoplastic Wall Box, IP66, 400 mm x 335 mm x 210mm

  • NG # 02775-HW-ABB-023

  • MF # 1SL0201A00 1SL0201A00

Manufactured By :
ABB
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Low Voltage Insulating Switchboards-Gemini Range


ABB Gemini range is revolutionising the market of low voltage electric insulating switchboards. They are the first switchboard made of thermoplastic material, to which the co-injection moulding technique gives the same mechanical characteristics as polyester. This means that it is sturdy, with its rigid covering and expanded internal core.

The thermoplastic wall-mounted enclosures have IP66 ° of protection (IP30 with the door open and with the appropriate components installed) and a high resistance to chemical and atmospheric agents.


Features and Benefits


• Does not contain fibreglass, that with time rises to the surface, jeopardising operation and safety
• IP66 protection meaning that they have protection against accidental contact and foreign bodies and powerful water jets
• Operating temperature of -25°C to +100°C
• 100% recyclable
• Has a resistance to abnormal heat and fire up to 750°C
• Snap-on mounting of all components in compliance with safety standards
• Doors supplied with 2 standard double bit locks (3 for sizes 5 and 6) which can be replaced with locks for ciphered key or with square/triangular impression


Typical Applications


The wall boxes are designed for mounting on your wall. They are used for low voltage automation and distribution, moulded-case circuit breakers, modular circuit breakers, monitoring, control and signalling devices, wiring ducts and electrical connection systems.


Note

Gland plates and chassis plates are not supplied with these wall boxes.

Specification

External Height400 mm
External Width335 mm
External Depth210mm
Body MaterialThermoplastic
Transparent DoorNo
IP RatingIP66
Chassis PlateNo
Door Lock TypeKey
Gland PlateNo
ColourGrey
Series1SL02
External Mounting TypeBracket
Internal Mounting TypeSnap-On
Fixing KitNo

Other ABB Products

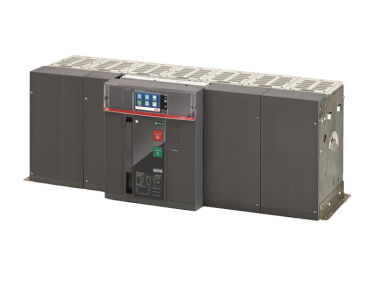

ABB Emax2 Electronic Circuit Breaker 6.3kA Ekip G Touch LSIG, 4 / f channels
