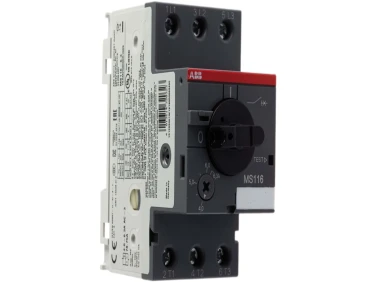

ABB 6.3 A Motor Protection Circuit Breaker

  • NG # 03898-HW-ABB-079

  • MF # 1SAM250000R1009 MS116-6.3

Manufactured By :
ABB
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Starters


Covers motors up to 16A (7.5kW)
Local isolator
Protects against overloads, short circuits, phase failure and faults in cabling or wiring
These Motor Starters can be used in conjunction with ABB Contactors, stock no. 445-0897 typically
Accessories available from auxiliary/signal contacts to under voltage releases. Using an adaptor, motor starter combinations can be easily formed utilising contactors from ABB's mini and A series range; see typically 445-0897 and 445-0825


Standards

IEC 60 947-1/IEC 60 947-2/EN60 P47-1/EN60 (47-2)

Approvals

UL, CSA

ABB Motor Protection Circuit Breaker, 6.3A Current Rated, Screw Terminals - MS116 Series - MS116-6.3


Need a device to safeguard your motor and equipment from faults? Choose this motor protection circuit breaker from ABB. There's no need for a fuse when using this component as its 10A trip class defends your circuitry from electrical overload. It has an ergonomic rotary handle on the front of the unit that makes it easy to turn your equipment on or off. For versatility, this unit handles both single-phase and three-phase applications. You can install it simply onto a DIN rail and use the screw terminals to make secure connections without specialist equipment.


• IP20-rated housing means it's tamper-proof and resists dust and small objects over 12mm
• Compact dimensions of 90 (H) x 45 (W) x 85.6mm (D) make it space-efficient
• 3-pole design allows multiple connections for increased productivity
• Lifespan of up to 100,000 cycles for long-lasting use
• Ambient air temperature compensation maintains optimal performance in changeable conditions


Applications


• Smaller motors under 25HP
• Industrial fans
• Electrical pumps

Specification

Brand

ABB

Current Rating

6.3 A

Motor Protection Component

Circuit Breaker

Series

MS116

Overall Length

90mm

Overall Width

45mm

Overall Depth

80.1mm

Minimum Operating Temperature

-25°C

Voltage Rating

690 V ac

Maximum Operating Temperature

+70°C

Breaking Capacity

50 kA

Number of Poles

3

Terminal Type

Screw Terminal

Enclosure Type

Din Rail
