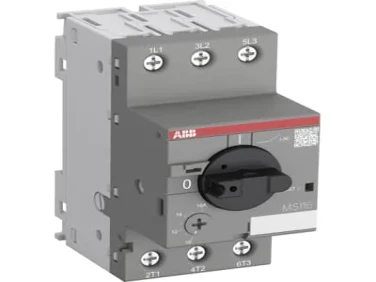

ABB 10 A Motor Protection Circuit Breaker, 690 V

  • NG # 03903-HW-ABB-084

  • MF # 1SAM250000R1010 MS116-10

Manufactured By :
ABB
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

ABB Motor Protection Circuit Breaker, 6kV Impulse Withstand Voltage, 10A Current Rating - MS116-10


Use this MPCB from ABB to safeguard your industrial equipment from damage caused by short circuits and overload conditions. A 3-pole configuration means it can control up to 3 circuits at the same time for enhanced efficiency. The unit's designed for mounting directly onto a DIN rail, so you won't need any specialised tools to install it. As it has an impulse withstand voltage of 6kV, it can resist sudden voltage spikes for optimal safety. Thanks to its wide operating temperature range of -25°C to +70°C, you can use this device in demanding environments.


Features & Benefits


• Screw terminals for simple and secure wiring
• Low power loss of 0.9 to 2.4W for energy-efficient operation
• Compact dimensions of 90 (H) x 45 (W) x 85.6mm (D) for installation in tight spaces
• Light weight of 265g means it puts minimal strain on your equipment


Applications


• Air conditioners
• Industrial conveyor belts


How long will this component last?


This component has a mechanical lifespan of 100,000 cycles, so you can depend on it for long-term performance.

Specification

Brand

ABB

Current Rating

10 A

Motor Protection Component

Circuit Breaker

Supply Voltage

690 V

Series

MS116

Overall Length

90mm

Overall Width

45mm

Overall Depth

80.1mm

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+70°C

Voltage Rating

690 V

Breaking Capacity

18 kA

Terminal Type

Screw

Number of Poles

3
