RFQ

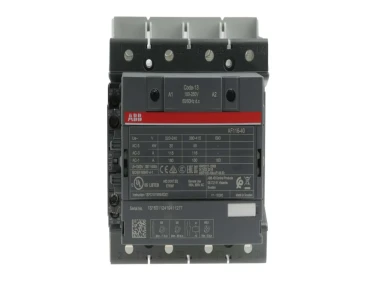

ABB AF116 AF Contactor, 230 V ac Coil, 4-Pole, 160 A, 55 kW, 4NO, 690 V ac

  • NG # 03905-HW-ABB-086

  • MF # 1SFL427102R1311 AF116-40-11B-13

Manufactured By :
ABB
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

ABB Contactor, 50Hz Main Circuit Rated Frequency, 8kV Rated Impulse Withstand Voltage - AF Series - 1SFL427102R1311


Want to boost system performance? Make the switch to this contactor from ABB. It rapidly turns equipment on and off to ensure efficient operation. Thanks to its 160A current rating and switching frequency of 300 cycles per hour, it handles the demands of heavy-duty applications without batting an eye. A wide voltage range between 100 and 250V AC adapts to input variations, saving energy and stabilising operations in fluctuating networks. Four poles and an integrated auxiliary contact let you simplify your setup to save space and cut down on wiring.


Features & Benefits


• Built-in surge protection helps prevent damage and service disruptions
• Mechanical durability of 5 million cycles for a long lifespan
• IP20 rating indicates shielding against objects larger than 12mm, including your fingers


Applications


• Industrial automation
• Pharmaceutical production
• Wastewater treatment
• Access controls


How big is this contactor?


It's a compact unit that measures only 150 (H) x 120 (W) x 128mm (D), so it's a space-saver for use in busy systems.


Can I combine this contactor with other electrical devices?


Yes, thanks to the unit's modular design, it's easy to extend its function by adding compatible auxiliary contact blocks.

Specification

Brand

ABB

Coil Voltage

230 V ac

Number of Poles

4

Contact Voltage Rating

690 V ac

Contact Current Rating

160 A

Range

AF116

Series

AF

Power Rating

55 kW

Normal State Configuration

4NO

Number Of Auxiliary Contacts

1

Auxiliary Contact Configuration

1NC

Terminal Type

Screw

Width

120mm

Length

150mm

Depth

128.1mm

Control Voltage

100 → 250 V

Maximum Operating Temperature

+50 °C, +70°C

Minimum Operating Temperature

-40 °C, -25°C
