Allen Bradley 100S-C Contactor, 24 V dc Coil, 3-Pole, 23 A, 2NO + 3NC, 690 V ac

  • NG # 02745-HW-ALBR-084

  • MF # 100S-C23EJ23C

Manufactured By :
Allen Bradley
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

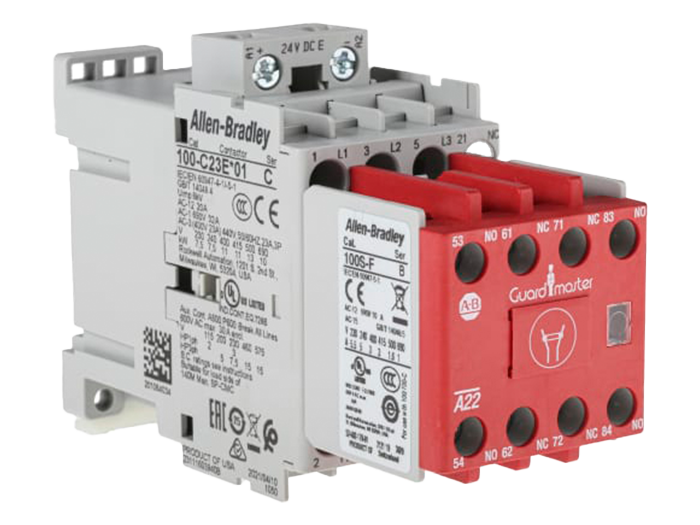

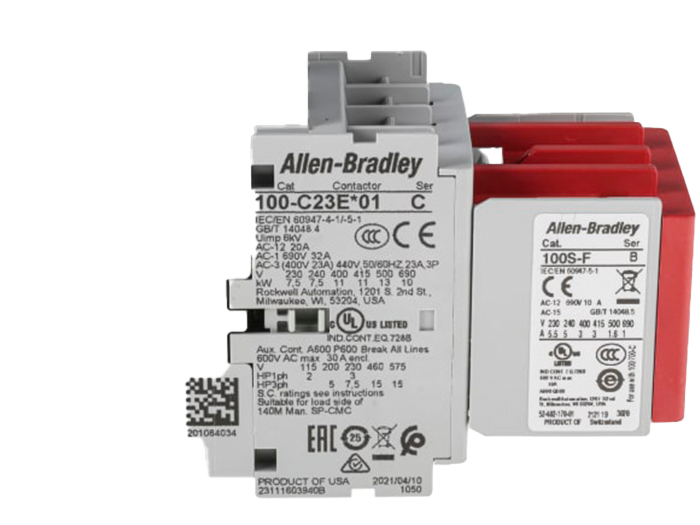

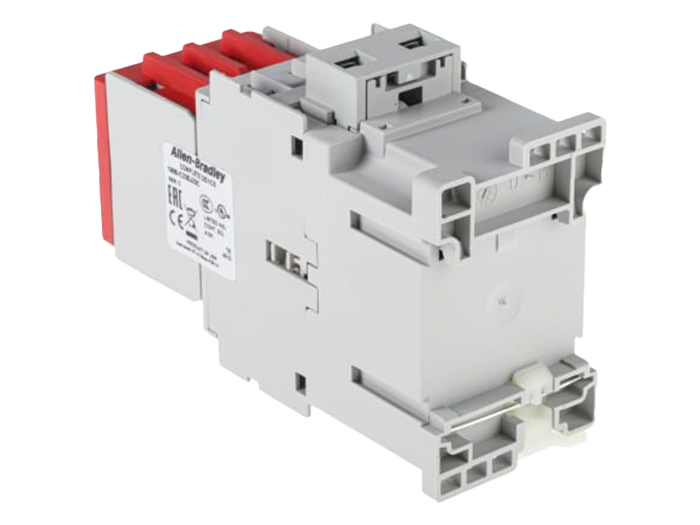

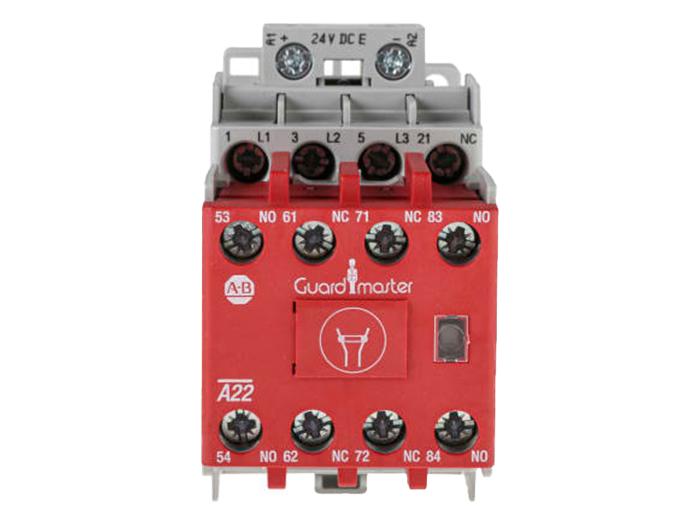

Allen Bradley 100S-C23EJ23C Safety Contactor


For safe and reliable switching capability combined with great performance the 100S-C23EJ23C Safety Contactor by Allen Bradley is an ideal solution. The 100S-C23EJ23C Contactor has 2NO/3NC aux contact configuration and 24 V dc electronic coil voltage. It has a rated operating current of 23 A. It also has 3NO power poles and line side coil termination.


This Bulletin 100S-C Safety Contactor features mechanically linked positively guided contacts, which are required in modern safety application feedback circuits. These mechanically linked NC auxiliary contacts do not change their state when a power pole welds. This efficient unit also offers gold-plated bifurcated auxiliary contacts, making it highly suited for low-energy applications. Additionally, this module is perfect for feedback control circuits with multiple series-connected NC auxiliary contacts. It has front-mounted aux contacts. Due to the bright red colour of the housing this safety unit can be identified quickly and easily when needed.


Features and Benefits:


• Positively guided main contacts according to IEC 947-5-1
• Protective cover prevents manual operation, yet the window allows visible on/off status
• Ideal for low-energy applications due to gold-plated bifurcated aux contacts
• Easy to identify due to red contact housings
• It has SUVA Third-Party certification and is RoHS compliant
• Wide range of accessories such as surge suppressors, electronic timers, and mechanical interlocks available to meet individual control needs
• Redundant contactors to isolate motor (hazardous motion)


Note: DC versions incorporate a diode protection circuit.


Certifications:


CE certified
UL listed
CSA certified
RINA certified
IEC60947
EN60947


What is a contactor?


Much like relays, a contactor is an electromagnetic device which is designed to switch electrical current through its contacts. It can switch a larger amount of electrical power than normal relays and can therefore be used for more heavy-duty, larger-scale applications, such as switching several different circuits simultaneously. It can also be controlled remotely and can be used for logic controlling to serve different functions, such as turning on some things at the same time as turning off others. Contactors feature high coil voltages and are able to switch more than 15 amperes, and they also have more input and output options than relays. They are frequently used to control electric motors and lighting systems. They contain a coil or electromagnet which opens or closes the contacts when the electrical current passes through the contactor.


Rockwell Automation is a global leader in industrial automation and digital transformation, and brings smart manufacturing to life. With a long legacy of creating Allen-Bradley® integrated control and information solutions, we help make you as productive as possible. Our portfolio of sensing, safety and motor control products can support your move towards smart machine applications. Allen-Bradley® IO-Link sensors are data-enabled and communicate with all field buses, providing diagnostic and health information about the device before a machine stops, and enabling quick production changeovers through fast parameter downloads from PLCs into the device. This reduces machine downtime and increases manufacturing OEE. For safety components, products with built-in diagnostics simplify the set-up of the smart device, and reduce maintenance, leading to a more efficient, machine data-driven approach.

Specification

Coil Voltage24 V dc
Number of Poles3
Contact Voltage Rating690 V ac
Contact Current Rating23 A
Series100S-C
FunctionSafety
Normal State Configuration2NO + 3NC
Auxiliary Contact Configuration2NO + 3NC
Number Of Auxiliary Contacts5
Width45mm
Length81mm
Depth125.5mm
Maximum Operating Temperature+60°C
Pole and Throw Configuration3P
Minimum Operating Temperature-25°C
