Allen Bradley Micro810 Series PLC CPU, 120 → 240 V Supply, Analogue, Digital Output, 8-Input, Analogue, Digital

  • NG # 02675-HW-ALBR-014

  • MF # 2080-LC10-12AWA

Manufactured By :
Allen Bradley
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

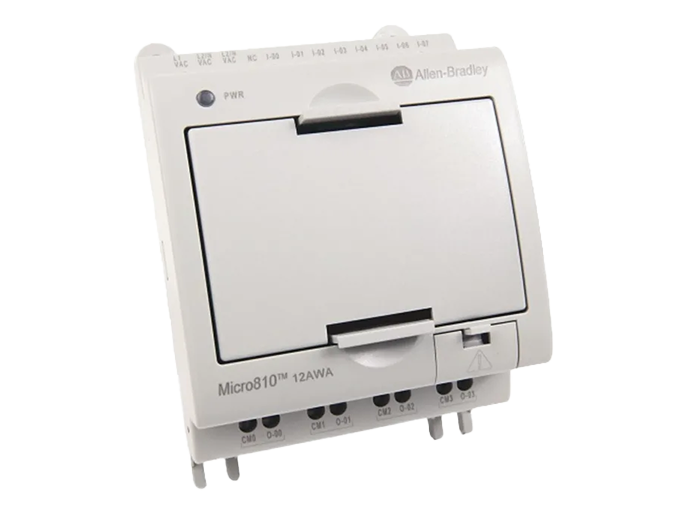

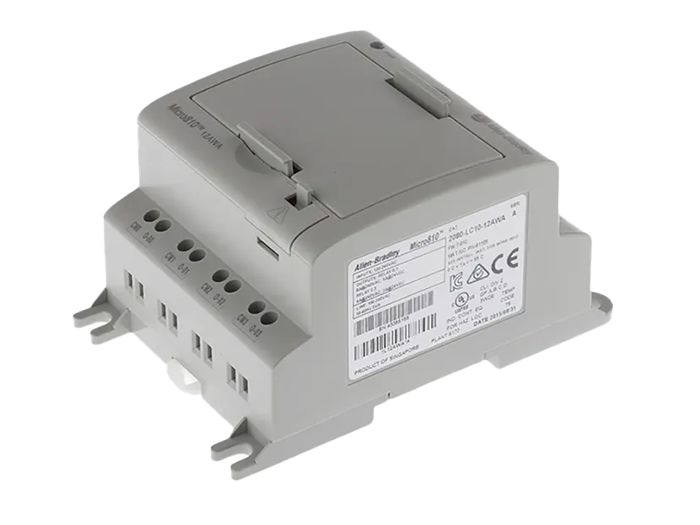

Micrologix 810 PLC - CPU


The Micro810 12 Point controller is an economical brick-style controller with embedded inputs and outputs. It can accomodate a USB adapter and an LCD module. It can also accomodate any 24V dc output power supply that meets minimum specifications such as the optional Micro800™ power supply.


The Micro810 controller functions as a smart relay with high current relay outputs, but with the programming capabilities of a micro PLC
As part of the Micro800 family, the Micro810 controller shares programming environment, plug-ins and accessories
12-pt form factor provides:
8A outputs eliminates the need for external relays
DC models allow 4 inputs to function as 4 0 → 10V analog inputs
Program download via USB programming port (adapter required, stock no. 750-8668)
Optional 1.5” local LCD for monitoring/modifying application data (variables). It also functions as a backup memory module
Configure and run core smart relay function blocks without programming (LCD required, stock no. 750-8661)
20-pt form factor and 26-pt form factor additionally have:
Embedded non-isolated serial port for HMI and communications to other devices
Up to 2 plug-in slots for adding analog I/O, serial port, etc


Allen Bradley PLC CPU Controller, 8 Inputs, 4 Outputs - Micro820 Series - 2080-LC10-12AWA


Programme your small industrial devices with this controller from Rockwell Automation's Allen Bradley range. With 4kB of memory, this simple PLC (programmable logic controller) CPU (central processing unit) is capable of automating functions such as temperature or compressor and elevator controls to save you time. It replaces the need for external relays, freeing up space on your system. This unit features eight inputs that can be used as analogue or digital connections to suit your network's needs.


• Compact dimensions of 91 (length) x 75 (width) x 59mm (depth) to save space on control panels
• Modular design makes it easy to add a digital display with a keypad and USB adapter
• Wide operating temperature between -20°C and +65°C for use in demanding environments
• Software programmable for increased functionality


Standards and Certifications


• CE (Conformitè Europëenne)
• cULus (Underwriters' Laboratories)


What programming languages does this PLC CPU controller use?


This PLC CPU controller is compatible with three industry-standard programming languages – ladder diagram, function block diagram and structured text. It's also programmable with Connected Components Workbench software.

Specification

Manufacturer SeriesMicro810
Number of Inputs8
Output TypeAnalogue, Digital
Supply Voltage120 → 240 V
Input TypeAnalogue, Digital
Number of Outputs4
Voltage Category24 V dc
Network TypeUSB
Kit IncludedYes
Dimensions91 x 75 x 59 mm
Minimum Operating Temperature-20°C
Memory4 kB
Mounting TypeDIN Rail
Length91mm
Depth59mm
Program Capacity2 kB
Maximum Operating Temperature+65°C
Number of Communication Ports1
Programming Language UsedFunction Block, Ladder Logic, Structured Text
Width75mm
