Allen Bradley Guardmaster 440N Series Magnetic Non-Contact Safety Switch, 250 V ac, 300V dc, Plastic Housing, NO/NC, 3m

  • NG # 02694-HW-ALBR-033

  • MF # 440N-S32015

Manufactured By :
Allen Bradley
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

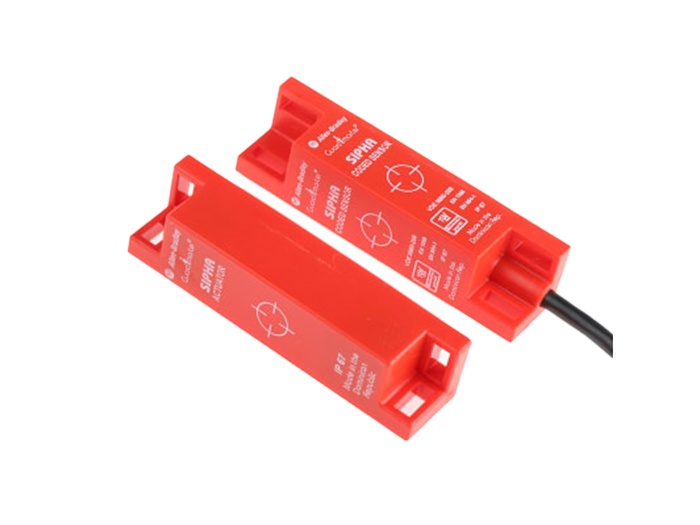

Allen Bradley Guardmaster 440N-S32015 Magnetic Non-Contact Safety Switch


The Sipha 440N-S32015 Magnetically Coded Non-Contact Switch by Allen Bradley Guardmaster provides superior monitoring for machine guards and enhanced protection for operators. This innovative technology uses several magnetically sensitive elements which must be activated in a precise order to operate correctly. Access to dangerous areas is prevented, as power to the motor is isolated when the safety barrier is released.


The Sipha sensor is expertly designed to operate with its own actuator, which ensures a higher level of security as it cannot be manipulated by a simple magnet. It is easy to install and versatile due to its moulded-in brackets and compact size. It has a sensor that must be connected to the Sipha control unit, which gives a monitored circuit. For high-risk applications the control unit is utilised with a single sensor to provide a high-integrity system. It has connecting facilities for a manual reset button and for monitoring external devices, such as contactors. This non-contact interlock switch is sealed to IP67 (NEMA 6P) which ensures that it is dust-tight and ideal for wet environments where machinery is regularly washed down. The 440N series is designed to have a high tolerance to guard door misalignment with its wide sensing field.


Allen Bradley Guardmaster have one of the broadest portfolios in the industry for machine safety components. Their products are cost-effective, high-quality, and built to global standards to help keep your operations running smoothly, protect your personnel, and maximise productivity.


Features and Benefits:


• It has a supply voltage rating of 250VAC, 300VDC at 0.5A current and comes with S21 housings and a 3m cable
• Non-contact actuation to allow the guard or gate to be opened instantly
• Highly reliable magnetic coded sensing and 1NC/1NO safety contact
• Must be operated with its own safety control unit
• Slim moulded ABS housing for flexible mounting
• Operating temperature range between -10°C … +55°C


Certifications:


IP67 rated
EN954-1
ISO13849-1
IEC/EN60204-1
NFPA79
EN1088
ISO14119
IEC60947-5-1
IEC/EN60947-5-3
ANSI B11.19
AS4024.1
CE certified
UL listed
TUV certified


What are magnetically coded non-contact switches?


A magnetically coded non-contact switch is a device used for monitoring the position of machine safety barriers. They are typically used in industrial environments. It uses a magnetically-actuated reed contact and a specially-coded actuator. When the barrier is opened the contacts will either open or close due to the magnetic force interrupting the circuit. As there is no contact between the sensor and actuator they take less wear, are resistant to shocks and vibrations, and are highly tamper-proof, which gives them a long service life. They are often used for sliding, hinge, and removable gates.

Specification

Supply Voltage250 V ac, 300V dc
Safety ContactsNO/NC
Housing MaterialPlastic

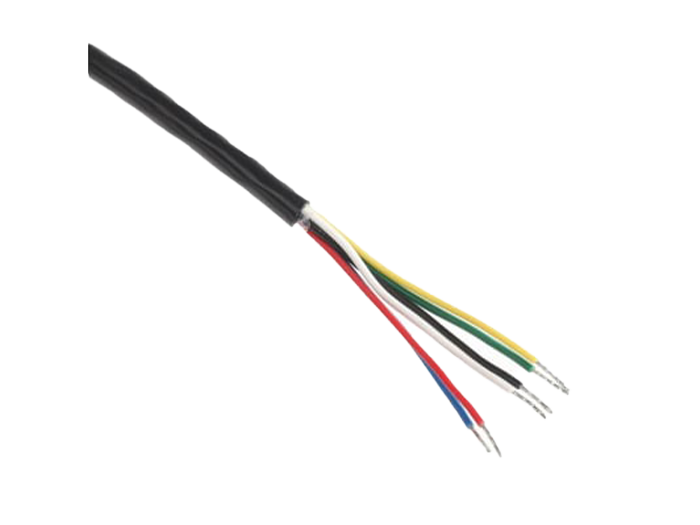

Connection Type3m Cable
Actuator TypeMagnetic
Sensor PrincipleMagnetic
Safety Category3
Actuator IncludedYes
RangeSipha
Switching Distance9 mm
Series440N
IP RatingIP67
Length19mm
Depth82mm
Width19mm
