Allen Bradley Guardmaster 440G-MT Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc, Actuator Included

  • NG # 02704-HW-ALBR-043

  • MF # 440G-MT47037

Manufactured By :
Allen Bradley
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

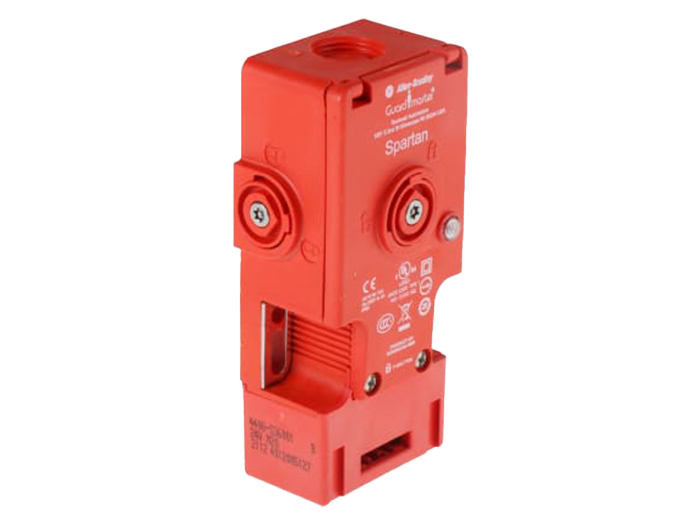

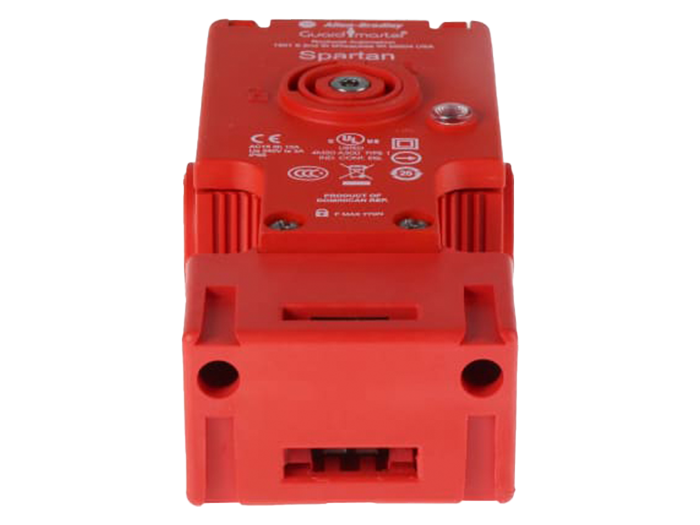

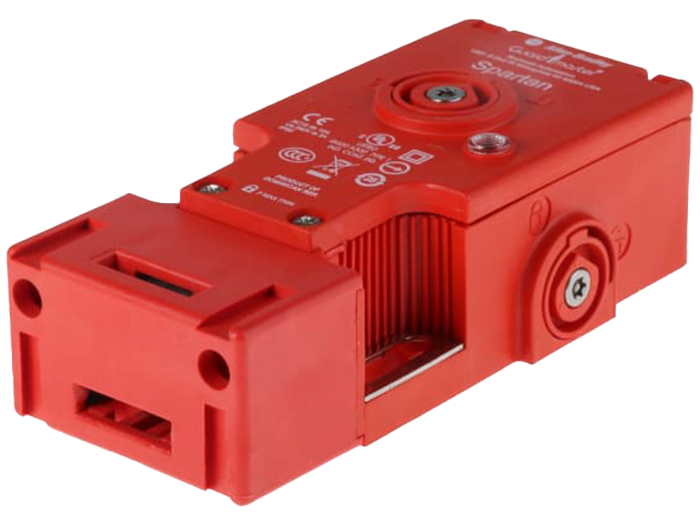

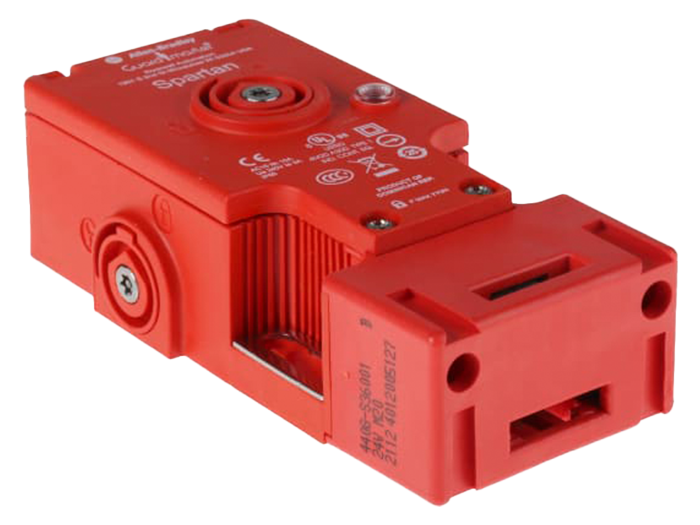

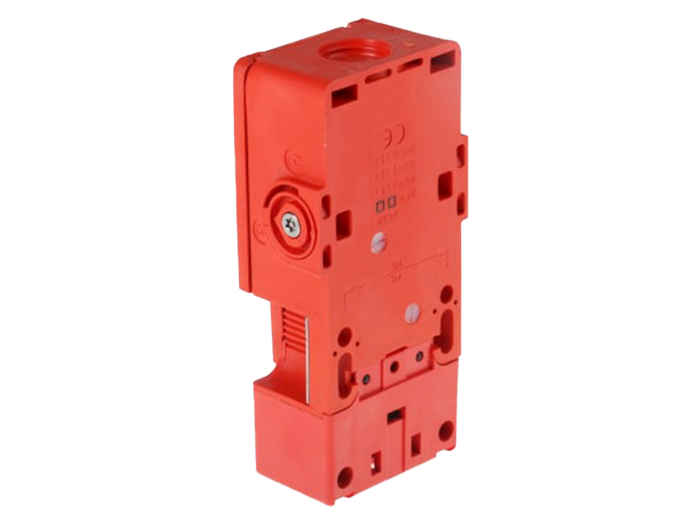

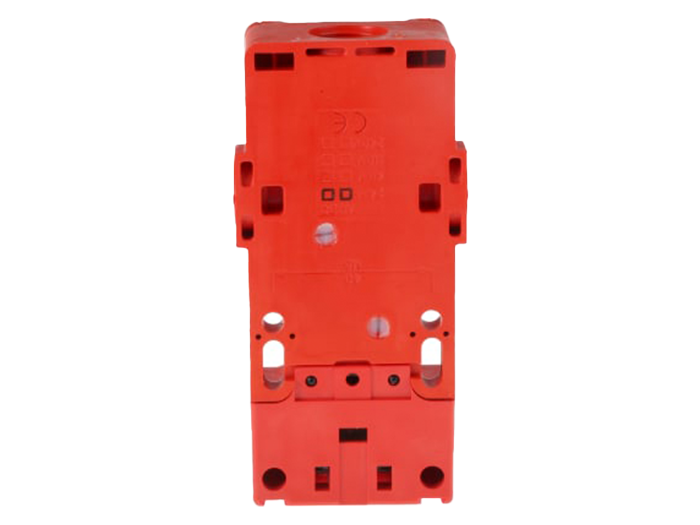

Allen Bradley Guardmaster 440G-MT47037 Solenoid Safety Interlock Switch, Power to Unlock


Ensure affordable and reliable safe-access to machinery for personnel with the 440G-MT47037 safety interlock. This switch can be used on equipment safety barriers to keep them securely locked while in operation, and to keep power isolated while the guard is released. This reduces risk of injury to operators by preventing access to dangerous areas where machinery may be in motion.


This guard locking switch has Break-Before-Make action, Power-to-Release functionality, and 3NC/1NO contacts. The supply voltage rating is 24VAC/DC and it has M20 conduit entry. Thermal current is 10A.


The 440G-MT Switches by Allen Bradley Guardmaster are heavy duty solenoid safety switches which are perfect for use with machinery which does not immediately stop when power is removed, or which could be damaged by interference while in motion. They ensure that the guard can only open when a signal is applied to their internal solenoid, which releases the locking mechanism. They are expertly designed to provide a superior level of protection for machine operators and keep your processes running smoothly.


These switches can have a high holding force running up to 1600N (360lbs) and have die-cast alloy housing which makes them suitable for use in harsh environments, to give you superior reliability. They have an operating temperature range of -25°C to +60°C. Actuator travel for positive opening is 15mm and solenoid power is 13W typical 100% ED. The minimum operating radius is 60mm.


Features and Benefits:

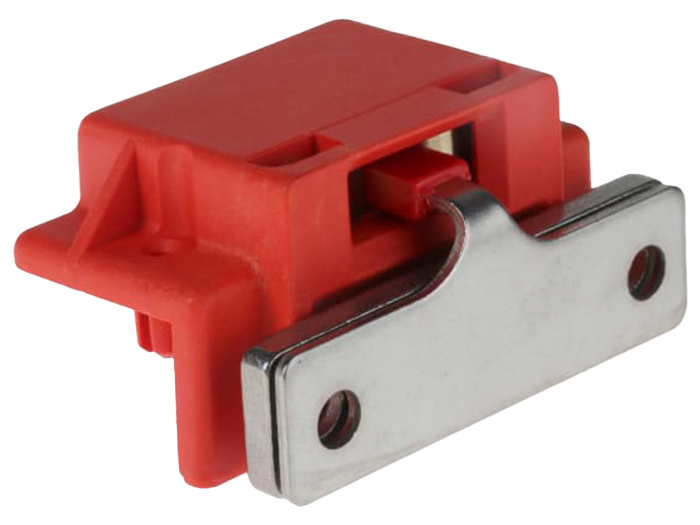

• Comes with a GD2 type standard actuator
• Visual indication of switch status due to embedded LED
• Robust die-cast painted zinc alloy housing provides enhanced durability and makes this switch ideally suited for harsh environments, such as industrial settings
• Holding force of 1500N (337 lbs) for greater stability
• Sealed to IP67 – fully protected against dust ingress and can withstand temporary immersion in water


Certifications:


IP65 rated
EN954-1
ISO13849-1
IEC/EN60204-1
NFPA79
EN1088
ISO14119
IEC/EN60947-5-1
ANSI B11.19
AS4024
CE certified
cULus approved
CSA certified
TUV certified


Note: This safety device can be used with GuardLink, a new linking technology from Allen Bradley Guardmaster. GuardLink simplifies and reduces the connection time of the safety system while providing real-time diagnostic information over Ethernet IP. This makes it simple to identify the location of the device that has tripped the system, thus reducing downtime and improving the machines overall efficiency. For more details, please refer to the GuardLink brochure.


Allen Bradley Guardmaster aim to maximise protection, efficiency, and productivity in your workplace with their wide range of machine safety and monitoring devices. With their high-quality safety products recognised for excellence and innovation across the globe, you can be sure to find a flexible and secure solution for your application.


How do Solenoid Interlock Switches work?


Solenoid interlock switches work by having their internal solenoid energised (Power to Release) or de-energised (Power to Lock) by an external signal. This is a wire coil which converts electrical energy into mechanical energy. These types of safety switches are often used in industrial environments on machine guards to monitor door status and limit unsafe access to hazardous equipment. They ensure that safety barriers remain securely locked while dangerous processes are running. They are useful with machinery that does not instantly stop, such as high inertia rotating machines.

Specification

Power to Lock / UnlockPower to Unlock
Supply Voltage24V ac/dc
Series440G-MT
Actuator IncludedYes
Safety Contacts3NC
Conduit EntryM20
Auxiliary Contacts1NO
Housing MaterialMetal
IP RatingIP67
Depth46.75mm
Width40mm
Length199mm
Standards MetANSI B11.19, AS4024.1, CCC, CE Listed, cULus Listed, EN1088, EN954-1, IEC/EN60204-1, IEC/EN60947-5-1, IEC60947-5-1, ISO13849-1, ISO14119, NFPA79, TUV
