Allen Bradley Guardmaster 440G-S Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc, Actuator Included

  • NG # 02703-HW-ALBR-042

  • MF # 440G-S36001

Manufactured By :
Allen Bradley
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Allen Bradley Guardmaster Spartan Guard Locking Switches


Secure your guard doors with the Spartan Safety Switches by Allen Bradley and create a safer environment for machine operators.


These switches are ideal for replacing traditional tongue interlocks and have the same footprint as the Trojan tongue interlock. They are supplied with a dedicated Spartan Actuator. These reliable switches have Power-to-Release functionality and 2N/C 1N/O contacts. They also have lid mounted status indication for quick and easy troubleshooting, and a rotatable head with 4 possible actuator entry positions.


In applications where excessive force can be generated such as rebound of heavy doors, the TLS-GD2 or Atlas should be considered.


Operational override key (285-7656 order separately) can be used to unlock locking mechanism in emergencies.


Standards:


EN1088, EN 292, EN60204-01 & EN60947-5-1

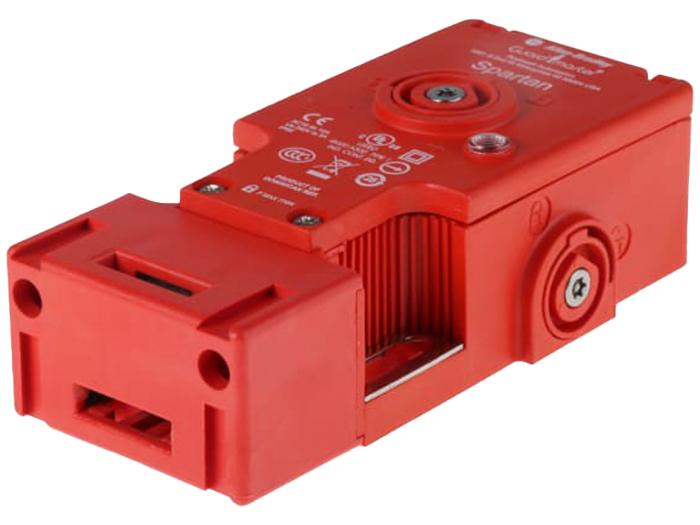

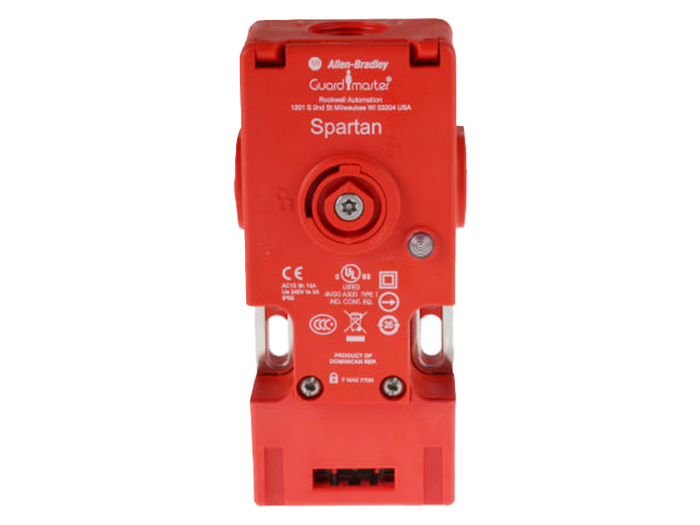

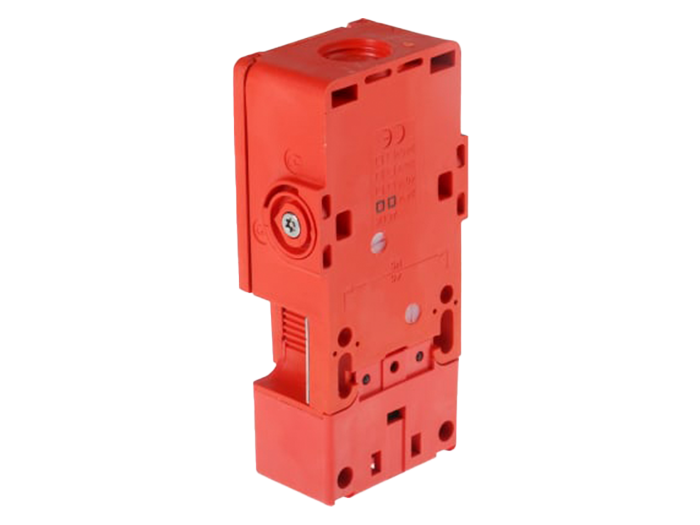

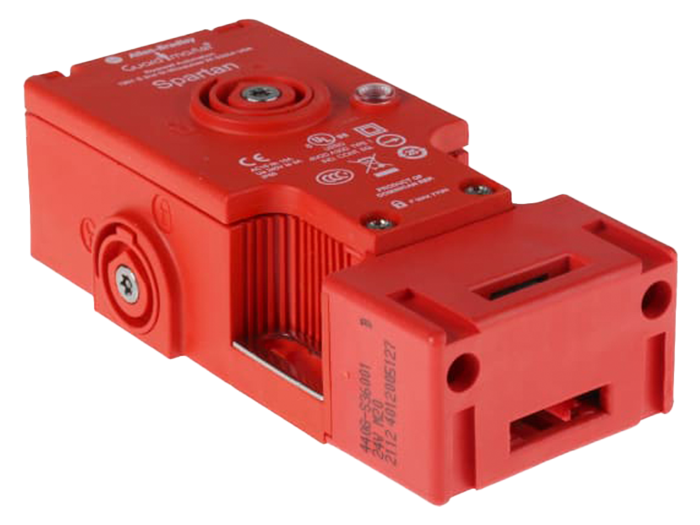

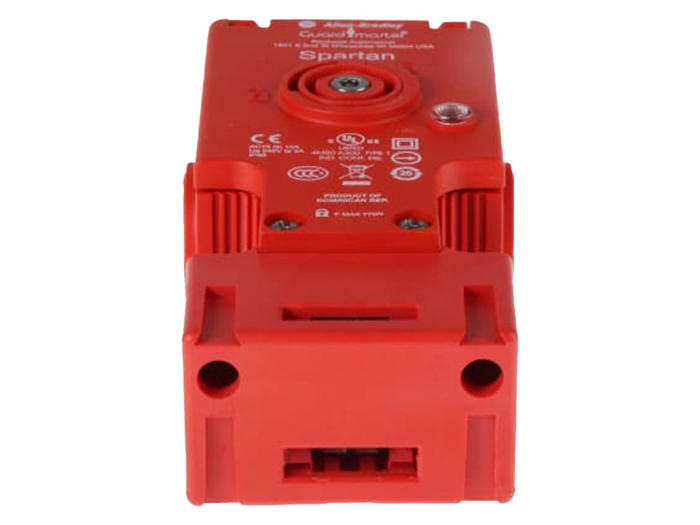

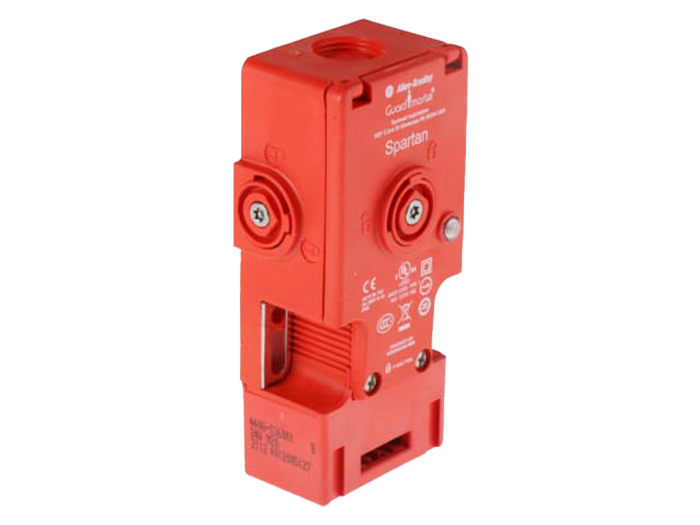

Allen Bradley Guardmaster Spartan 440G-S36001 Solenoid Interlock Safety Switch


The Spartan 440G-S36001 guard locking device is a positive mode and tongue operated switch that firmly locks safety guards while machinery is in motion and isolates power when the barrier is released. This helps to prevent unsafe access to dangerous areas for personnel and reduces risk of damage to equipment through premature interference. The mechanism can only be released when a signal is applied to the internal solenoid, which allows the tongue to be removed from the switch. The Spartan switch is a cost-effective solution which is perfectly suited for use with machinery that does not come to an immediate stop.


This Power-to-Release safety switch has a supply voltage rating of 24VAC/DC and 2NC Safety Contacts and 1NO Auxiliary Contact. It provides enhanced stability with a high holding force of 770N (173 lbs). Conduit entry is M20. The housing material is comprised of UL approved resilient glass-filled polyester, and this switch has an operating temperature of -20°C to 60°C. It has a thermal current of 10A.


Features and Benefits:

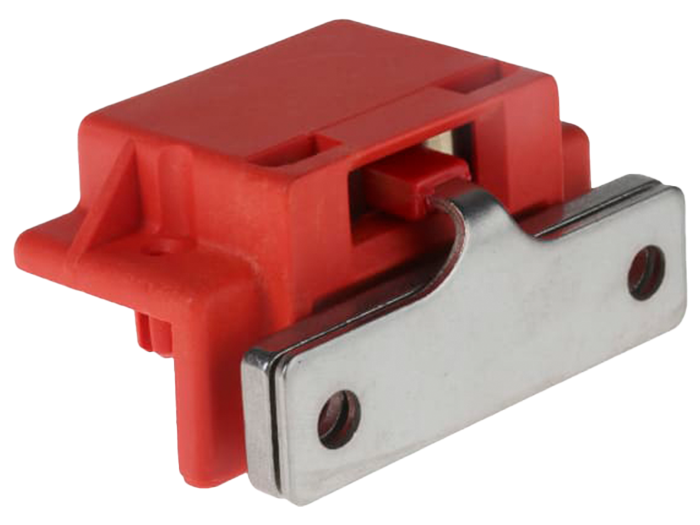

• Includes a Standard type actuator made of stainless steel
• Environmentally sealed to IP67 rating, which makes it dust-tight and durable against some immersion in water
• Fast, easy troubleshooting with lid mounted status indication, LED provides visual indication of switch status
• Rotatable head in 4 possible actuator entry positions
• Ideal for use with hinge, sliding, and lift-off doors


Certifications


IP65 rated
EN954-1
ISO13849-1
IEC/EN60204-1
NFPA79
EN1088
ISO14119
IEC/EN60947-5-1
ANSI B11.19
AS4024
CE certified
cULus approved
CSA certified
TUV certified


What are Solenoid Interlock Switches?


A solenoid interlock switch is a type of safety switch with an internal solenoid; a wire coil which converts electrical energy to mechanical. This type of mechanism limits access to dangerous areas where machinery may be functioning by ensuring that that barriers remain securely shut. The safety guard can only be opened through either energising (Power to Release) or de-energising (Power to Lock) the solenoid with an external signal. They are often used in industrial environments, for example with high inertia rotating machines.

Specification

Power to Lock / UnlockPower to Unlock
Supply Voltage24V ac/dc
Series440G-S
Actuator IncludedYes
RangeSpartan
Actuator TypeStandard
Safety Contacts2NC
Conduit EntryM20
Auxiliary Contacts1NO
Housing MaterialPlastic
IP RatingIP67
Depth120mm
Width35mm
Length58mm
