RFQ

Allen Bradley Micro830 Series PLC CPU for Use with Micro800 Series, Digital Output, 6-Input, Digital Input

  • NG # 02670-HW-ALBR-009

  • MF # 2080-LC30-10QWB

Manufactured By :
Allen Bradley
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

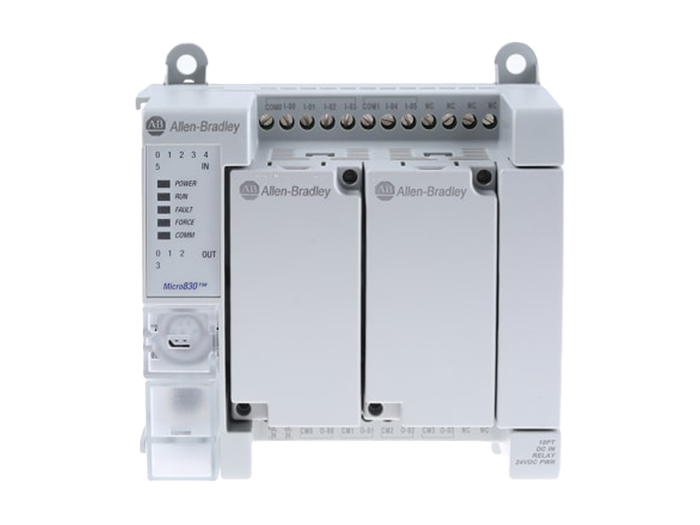

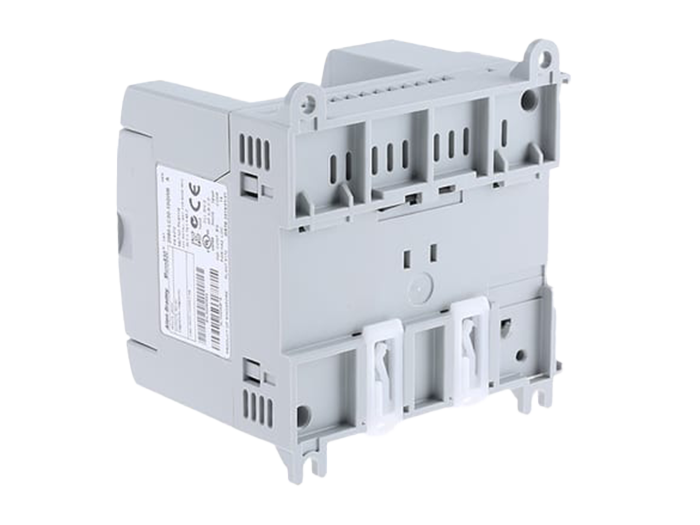

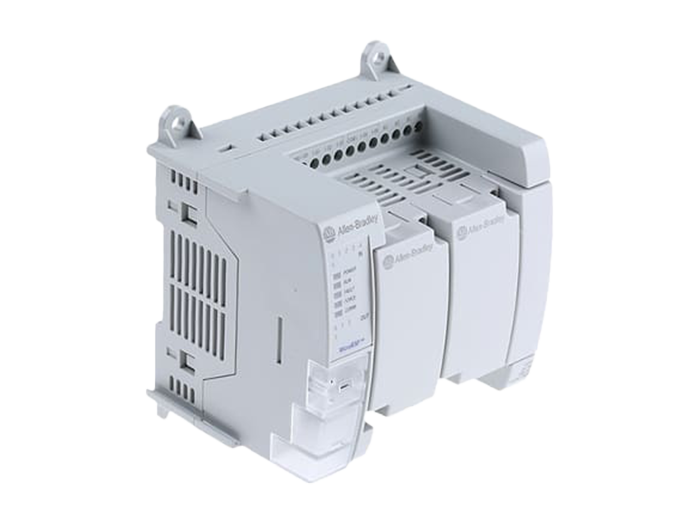

Allen Bradley Micro830 PLC – CPU


For a smart control system that delivers optimal customisation, reliability, and security look no further than the Micro830 Programmable Logic Controller by Allen Bradley.


These cost-effective controllers are specially designed for stand-alone machine control applications which require flexible communications and I/O capabilities. They can support up to 88 Input/Output points with high performance I/O, interrupts, and Pulse Train Output motion (PTO). These programmable controllers allow easy incorporation of up to 5 plug-in modules, which provide greater personalisation and increased functionality without adding to the product footprint. They offer simplified communication via the serial port and removable terminal blocks on most models to reduce wiring time.


For ease-of-installation and maintenance Micro800 system control devices share common software and accessories. These smart devices by Allen Bradley ensure that you can reduce downtime, decrease operational costs, and maximise productivity with a fully customised control solution.


Features and Benefits:


• Offers 10-point, 16-point, 24-point, and 48-point controllers to suit your requirements
• Supports as many as five Micro800™ plug-in Modules for greater personalisation
• Has built-in motion capabilities by supporting as many as three axes with Pulse Train Outputs (PTO)
• Provides fast, reliable embedded communications via USB programming port and non-isolated serial port (for RS-232 and RS-485 communications)
• Modbus RTU protocol (serial port)
• Supports microSD™ card for program transfer, datalog, and recipe management through plug-in module
• Up to six High-Speed Counter inputs (HSC) - 100KHz HSC included on 24V DC models


Software:


The Micro830 PLC’s are easy to program and use Connected Components Workbench programming software, which is free to download. This software provides controller programming, device configuration and data sharing with the HMI editor for PanelView Component operator products. The software also supports three standard IEC programming languages: ladder diagram, function block diagram and structured text. Password protection is supported for all Micro800 programmable controllers, ensuring a higher level of security.


2080-LC30-10QWB - The Micro830 controller allows integration of as many as five plug-in modules. The plug-in modules enable machine builders to personalize the controllers to increase functionality. It also offers removable terminal blocks (most models) and simplified communication via serial port. The controllers include:


• up to six High-Speed Counter inputs (HSC)(1)
• 100 kHz speed HSC available on 24V DC models
• up to three embedded Pulse Train Outputs (PTO) for basic positioning (2)
• High speed input interrupts
• Modbus RTU protocol (serial port)
• CIP Serial to allow tighter integration with PanelView Component
• Embedded USB programming and serial port (RS232/485)
• Plug-in slots to customize according to needs

Specification

Manufacturer SeriesMicro830
Number of Inputs6
Output TypeDigital
For Use WithMicro800 Series
Input TypeDigital
Number of Outputs4
Voltage Category24 V dc
Network TypeModBus
Kit IncludedYes
Communication Port TypeRS232, RS485
Programming Language UsedFunction Block, Ladder Logic, Structured Text
Minimum Operating Temperature-20°C
Width100mm
Programming InterfaceOperating Panel
Memory8 kB
Depth80mm
Program Capacity4 kB
Length90mm
Maximum Operating Temperature+65°C
Dimensions90 x 100 x 80 mm
Number of Communication Ports1
