NG # 2107-HW-ABB-007
MF # 2107-HW-ABB-007
SKU # 2107-HW-ABB-007
Go faster. Go further than ever. GoFa’s class-leading speed, safety, and ease of use will take your business to the next level.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteGoFa™ CRB 15000 is a new collaborative robot for close and safe collaboration between humans and robots. GoFa incorporates a range of features that allow it to be used safely alongside human workers without the need to build bulky barriers. Designed for handling up to 5 Kg, GoFa has integrated torque sensors in each of each six joints offering superior power and force-limiting performance. Ease-of-use is in focus here, with enhanced interaction capabilities, superior lead through, and Wizard easy programming, anyone can start using this robot right away!

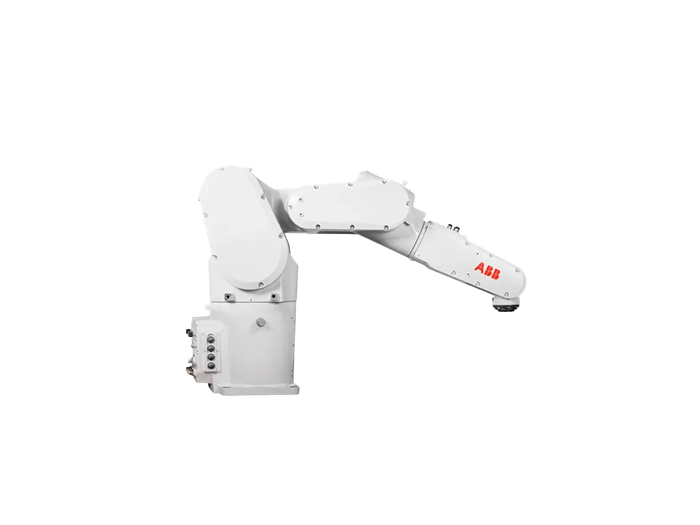

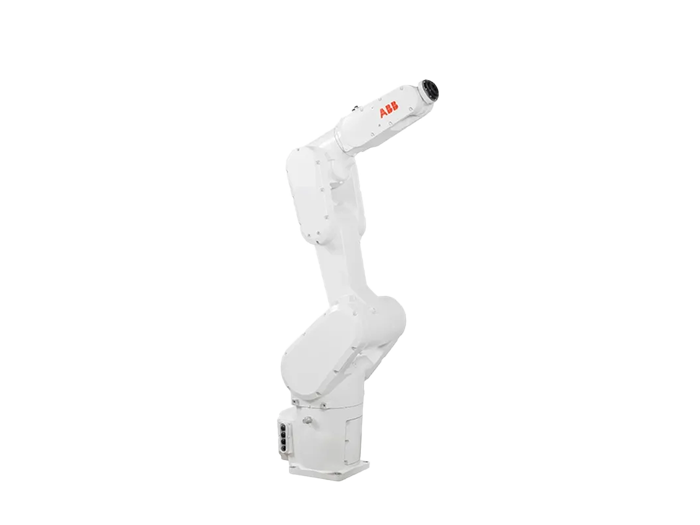

IRB 1300 offers class-leading lifting ability, reach, and path accuracy, in a faster, more compact package to enhance both productivity and production-line flexibility.
The IRB 1300 offers class-leading lifting ability, reach, and path accuracy, in a faster, more compact package to enhance both productivity and production-line flexibility.

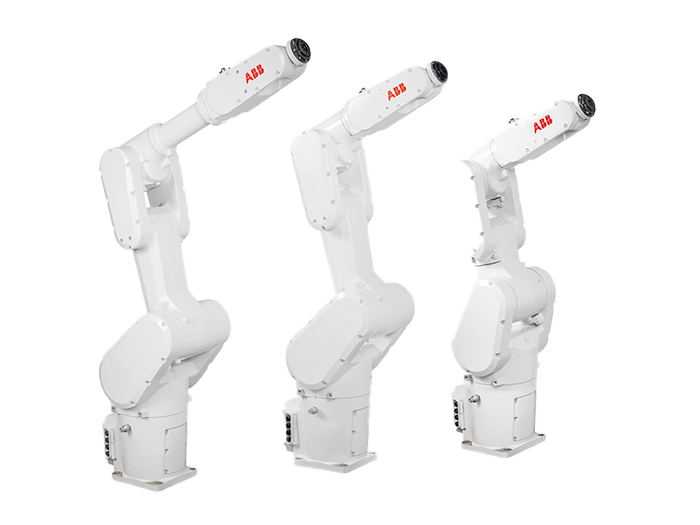

The IRB 1300 six-axis industrial robot has the reach and lifting capacity to serve high-load applications in electronics, general industry, food & beverage, logistics, and tier 1 automotive production. Available in three main load/reach versions - 11 kg/0.9 m, 10 kg/1.15 m, and 7 kg/1.4 m - the 11 kg variant offers the highest payload of any robot in its class.
Rapid production is ensured by the IRB 1300’s 27 percent improvement in cycle times. Combined with greater payload and reach, the IRB 1300 can be used for a wide range of tasks in materials handling, machine tending, polishing, and assembly and testing applications.
Meeting the need to maximize production capacity while saving on space, the ABB IRB 1300 is nearly 60 percent lighter and one-sixth the footprint of ABB’s IRB 1600 robot. Occupying just 220 mm by 220 mm of floor space, the IRB 1300 enables more robots to be deployed in a given area.
Key benefits
• 60% weight reduction*, and only one-sixth*
of the footprint for confined spaces
• Up to 27% faster cycle times** for increased
productivity and efficiency
• Equipped with up to 24 I/O connections
(C1+C2+C3) for more sophisticated/complex
applications
| Robot version | Reach (mm) | Payload (kg) | Armload (kg) |
| IRB 1300-11/0.9 | 900 | 11 | 1 |
| IRB 1300-10/1.15 | 1150 | 10 | 0.5 |
| IRB 1300-7/1.4 | 1400 | 7 | 0.5 |
| IRB 1300-12/1.4 | 1400 | 12 | 0.5 |
| Number of axes | 6 | ||
| Protection | Standard IP40, Option: IP67, Foundry Plus 2 | ||
| Cleanroom | Option ISO 4 | ||
| Mounting | Any angle1 | ||
| Controllers | OmniCore | ||
| Integrated signal and power supply | Up to 24 Signals (C1+C2+C3) on the wrist (optional) | ||
| Integrated air supply | 6 x 4 air on the wrist (Max. 6 Bar)² | ||
| Integrated ethernet | One 1000 Base-T ethernet port² | ||
