NG # 2118-HW-ABB-018

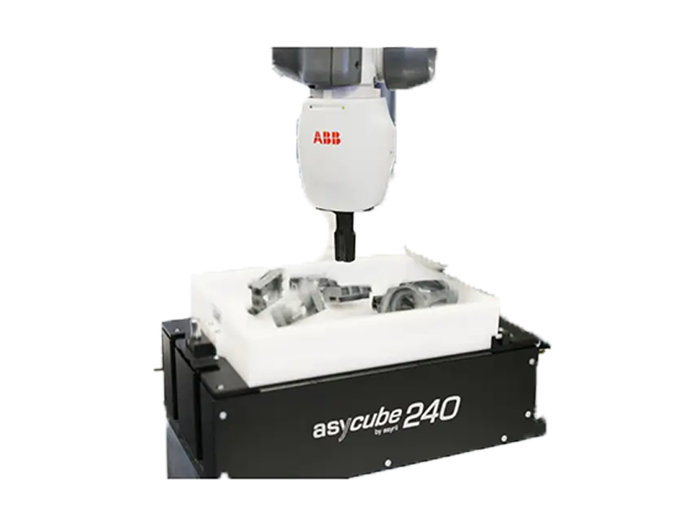

Function package Asycube 240
Feeding technology easily integrated
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteWith the function package Asycube 240, ABB offers an interface to the feeding technology of the manufacturer Asyril. The functional package consists of a preconfigured user interface and hardware components that combine ABB robots and feeding technology into a unified system.
The advantages of the function package at a glance:
• Flexible feeding solution for small parts
• Optimized separation of the bulk material
• Especially suitable for frequently changing part geometries/product variants
• Reduction of the planning effort for development and system setup
• Simplification of the programming
• Reduction of the commissioning time Hardware Components
• Asycube 240 with red backlight and flat vibration plate
• Power supply 24V and Ethernet switch in one housing
• Cable packet
Hardware Options
• Mass plate and vibration damper as a massive mounting plate for the Asycube system and for decoupling the vibrations from the substructure
• Hopper (available in 2 sizes) with a hopper control system RobotWare Software Components
• Prepared interface for up to ten Asycube 240 systems with hopper
• Graphical user interface on the FlexPendant for configuration and testing
• Special RAPID instructions to control the feed system and hopper with the help of a robot program
| Description | Dimension |
| Typical part size | 5–40 mm |
| Vibration plate | 150 mm |
| Footprint | 171 mm |
| Max. height | 131 mm |
| Gripping height | 105 mm |
| Height of the entire system | 251 mm |
| Mass plate | 84 mm |
| Vibration damper | 28 mm |
| Mounting plate | 8 mm |
