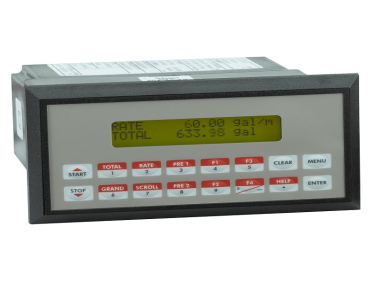

Badger Cox FC30 Flow Computer

  • NG # 04146-HW-BM-026

The  Cox® FC30 Flow Computer was designed for gas and liquid applications with potentially varying process conditions. The ability to program the flow computer with universal viscosity curve (UVC) calibrations with a temperature input provides compensation by means of Strouhal-Roshko algorithms.

Manufactured By :
Badger Meter
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This versatile flow computer provides users with an easy to read display, programmable front panel and an intuitive firmware menu structure.

Multiple Isolated Outputs. Analog and pulse outputs are isolated to protect flow data from electrical noise.
10 Selectable Fluid Tables. Preset tables allow for multiple fluid selections to minimize downtime between fluid changes.
Precision Temperature Compensation Methods.Temperature fluid viscosity compensation and bore diameter corrections are accomplished using Strouhal/Roshko equations.
EIA-232/485 Serial Communication. Data log, print or communicate with a host PC.
Service/Test Mode. During a start-up, users can print out the system configuration, monitor inputs and exercise outputs.
Batching. Several batching functions are available to provide compensation options in the batching process.

Specification

Operating Temperature Range32...122 °F
Power Requirements110V AC: 85...127V rms at 50/60 Hz
220V AC: 170...276V rms at 50/60 Hz
10...14V DC, 14...28V DC: 300 mA Max
Linearization40-point linearization table
Internal EquationsStrouhal-Roshko, API 2540 and AGA-7
