M2000 Electromagnetic Flow Meter

  • NG # 04128-HW-BM-006

M2000 Electromagnetic Flow Meter

Manufactured By :
Badger Meter
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

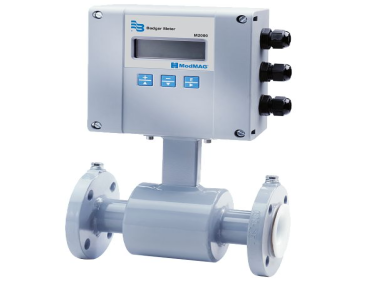

The Badger ModMAG M2000 is a high-accuracy electromagnetic flow meter designed for measuring conductive liquids such as water, wastewater, and industrial fluids. With no moving parts and zero pressure loss, it ensures long-term reliability, easy installation, and virtually no maintenance.

Specification

ParameterDetails
TypeElectromagnetic Flow Meter
Pipe Size Range0.5” to 16”
Accuracy±0.20% of rate ±1 mm/s
Power Input85–265 V AC or 10–36 V DC
Output/CommunicationModbus, BACnet, Analog, Pulse, HART (optional)
Liner MaterialPTFE or Hard Rubber
Housing MaterialStainless Steel
Fluid Conductivity Requirement≥ 5 µS/cm
Display/AmplifierMeter-Mounted (integral)
Temperature RangeUp to 150 °C (302 °F)
InstallationInline, no straight-run required (optional zero straight-run accuracy mode)
CertificationsNSF Listed, MCERTS Approved
MaintenanceNo moving parts – virtually maintenance-free
