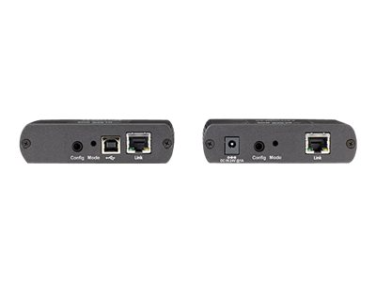

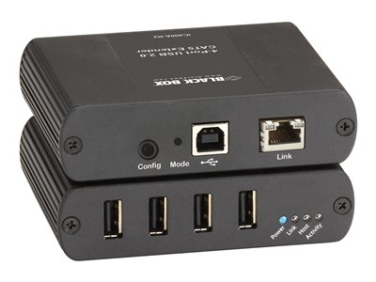

Black Box - USB extender - USB 2.0

  • NG # 03472-HW-BLACK-005

  • MF # IC400A-R2

Manufactured By :
Black Box
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Extend a USB 2.0 connection beyond the 16 ft (5 m) limitation up to 328 ft (100 m) over CATx UTP cable to four USB peripherals. Get USB connectivity anywhere. Install your USB devices anywhere! Combine the 4-Port CATx USB Extender with additional USB hubs to connect up to 30 USB devices. An AC power adapter at the remote unit provides up to 600mA max to each of the 4 USB ports. Use it for any or all of the following applications Industrial control KVM extension Digital signage Remote desktop USB connections Security Web camera and access control Medical Device connectivity USB Web device sharing printing scanning storage.

Specification

General
Device Type
USB extender
Form Factor
External
Networking
Ports Qty
4
Connectivity Technology
Wired
Data Link Protocol
USB 2.0
Data Transfer Rate
480 Mbps
Max Transfer Distance
328 ft
Compliant Standards
USB 1.1, USB 2.0
Expansion / Connectivity
Interfaces
4 x USB 2.0 - Type A
Miscellaneous
Cables Included
1 x USB cable - 6.6 ft ¦ 1 x USB power cable
Compliant Standards
Plug and Play, FCC Class B certified, IC Class B, EN 61000-4-2, EMC, RoHS
Power
Power Device
External power adapter
Software / System Requirements
OS Required
Apple MacOS, Linux, Microsoft Windows
Dimensions & Weight
Width
3.9 in
Depth
3 in
Height
1 in
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
122 °F
Humidity Range Operating
20 - 80% (non-condensing)
