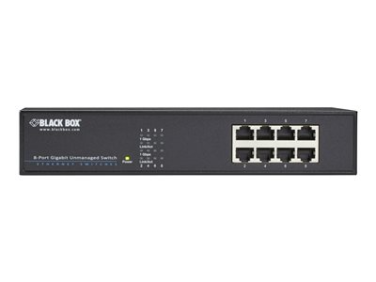

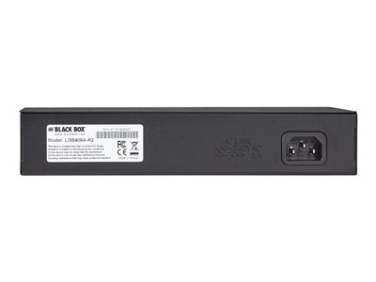

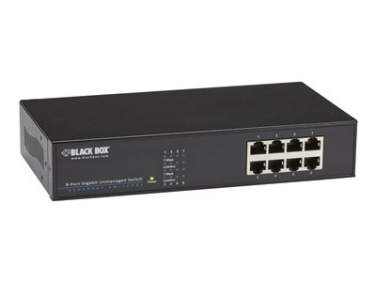

Black Box Gigabit Unmanaged Switch - switch - 8 ports - rack-mountable

  • NG # 03482-HW-BLACK-015

  • MF # LGB408A-R2

Manufactured By :
Black Box
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Gigabit Ethernet switch enables easy network expansion. This high-speed Gigabit Ethernet switch is ideal for building small workgroups as well as small- or home-office networks. It's also a good choice for remote- and branch-office installation. Its fast 1000-Mbps ports provide fast file transfer yet automatically adapt to older 10- and 100-Mbps devices enabling you to mix and match different network speeds on the same network. All ports support Auto MDI/MDI-X so you never have to worry about whether you need a straight-pinned or crossover cable.

Specification

General
Device Type
Switch - 8 ports
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000
Performance
Forwarding performance: 1488000 pps
MAC Address Table Size
8K entries
Jumbo Frame Support
9KB
Features
Auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, broadcast storm protection, Back Pressure Support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
RAM
3.5 MB
Status Indicators
Power, 1000M device connected, link/activity
Expansion / Connectivity
Interfaces
8 x 1000Base-T RJ-45
Power
Power Device
External power adapter
Voltage Required
AC 120/230 V (50 - 60 Hz)
Power Consumption Operational
15 Watt
Miscellaneous
Rack Mounting Kit
Included
Compliant Standards
FCC Class A certified, NOM
Dimensions & Weight
Width
4.8 in
Depth
9 in
Height
1.7 in
Weight
31.74 oz
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
113 °F
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-4 °F
Max Storage Temperature
194 °F
