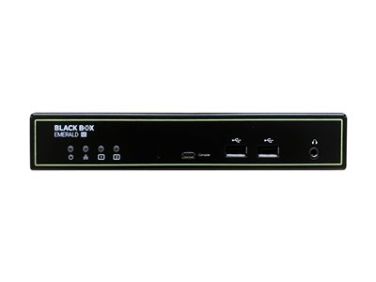

Black Box Emerald Dual Head 2K DisplayPort KVM Over IP Receiver - KVM / audio / serial / USB extender

  • NG # 03492-HW-BLACK-025

  • MF # EMD2002SE-DP-R

Manufactured By :
Black Box
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Full HD KVM extension and switching for physical and virtual machines over IP High-Performance KVM Emerald SE provides users with a seamless desktop experience anywhere on a TCP/IP network while allowing the actual hardware to be housed in a corporate data center or in the cloud. The performance of Emerald SE allows easy deployment on standard corporate networks and even across WANs. The solution enables the same experience of a desktop PC even for media-rich applications like video and photo editing. Emerald SE supports DisplayPort video with resolutions up to 1920 x 1200 transparent USB 2.0 and analog audio. Link them in a point-to-point KVM extension over CATx up to 328 ft./100 m or even farther using an IP or WAN connection. Or connect multiple transmitters and receivers to an Emerald or IP switch to create a matrix switching setup. Virtualization Support Emerald SE simplifies access to both physical and virtual servers with high-performance connectivity to virtual machines supporting VMware(r) Microsoft(r) HyperV(r) and Citrix(r) using RDP 8.1/RemoteFX. Limitless Scaling Your Emerald KVM network may start small but is scalable to meet your future needs just by adding endpoints. Connect up to 32 endpoints no additional KVM management appliance cards or chassis is required. For larger deployments use our Boxilla KVM management solution. A welcome addition to the Emerald product family Emerald SE works seamlessly with the rest of the Emerald product family and these popular Black Box KVM product families DKM proprietary direct-connect KVM system Freedom II Multi-Monitor Switch with Glide-and-Switch technology ControlBridge our system for one-touch multisystem control Boxilla KVM manager.

Specification

General
Device Type
KVM / audio / USB extender (receiver)
Form Factor
External
Networking
Connectivity Technology
Wired
Keyboard / Mouse Interface
USB
Max Resolution
1920 x 1200 @ 60 Hz
Max Transfer Distance
328 ft
Status Indicators
Power, link/activity, speed
Features
Supports DDC communication, USB HID Transport, dual display support
Encryption Algorithm
128-bit SSL
Compliant Standards
USB 2.0
Expansion / Connectivity
Interfaces

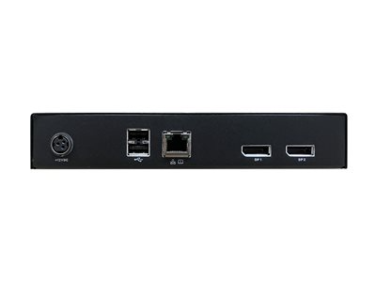

2 x DisplayPort female ¦ 4 x USB 2.0 - Type A female ¦ 1 x network - RJ-45 ¦ 1 x audio - 3.5 mm ¦ 1 x console - micro-USB Type B
Miscellaneous
Included Accessories
Power adapter, power cable
Compliant Standards
Directive 2011/65/EU, Directive 2014/30/EU, Directive 2015/863/EU, FCC, UKCA, REACH, TSCA, Directive 2014/35/EU, EN 62368-1:2014, UL, cUL, GS, PSE Mark, BSMI, RCM, CB
Power
Power Device
External power adapter
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Operational
9 Watt
Software / System Requirements
OS Required
Microsoft Windows 10 / 11, Microsoft Windows Server, Linux, Apple MacOS
Dimensions & Weight
Width
5.4 in
Depth
6.1 in
Height
1.3 in
Weight
13.58 oz
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
5 - 95% (non-condensing)
