RFQ

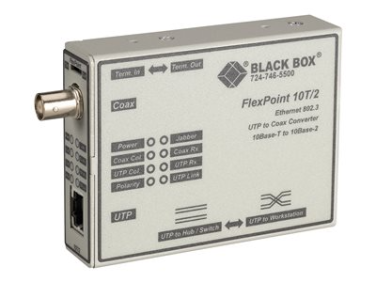

Black Box - transceiver - 10Mb LAN

  • NG # 03493-HW-BLACK-026

  • MF # LMC210A

Manufactured By :
Black Box
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Connects 10BASE-T to ThinNet (coax) devices. Supports ThinNet cable to 185 meters (606.9 ft.) and up to 30 stations. UTP crossover switch plus automatic polarity detection. Switch-selectable ThinNet line termination. LEDs display status. Hardware available for mounting the converter to a wall or a DIN rail. Can also be used in the FlexPoint 14-Slot Power Chassis or the FlexPoint 5-Position Rackmount Kit. FlexPoint(tm) Modular Media Converters from Black Box are versatile and cost-effective standalone media converters that you can upgrade to a chassis-based system. They provide the ultimate in flexibility and reliability for your expanding multimedia LAN. FlexPoint offers a very wide range of converter options including media converters for legacy systems such as ThinNet and Token Ring. Your choices include Ethernet Fast Ethernet Gigabit Ethernet Token Ring UTP Single-mode fiber Multimode fiber ThinNet Single-mode to multimode fiber converters Long-distance fiber converters ATM OC-3 ATM OC-12 10/100 rate converters TI/EI Line Drivers The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes. Tailor the system to your requirements. Get the media converters you need now and use them individually. Then when your LAN grows mount your media converters on the wall in the 5-Position Rackmounting Kit or as modules in the Power Chassis. The Power Chassis holds 14 media converters and a Single or Dual AC or DC Power Supply. Also be sure to see the rest of the FlexPoint family FlexPoint 10BASE-T to 10BASE-FL Media Converters (LMC212A-MM-R3 etc.) FlexPoint 100BASE-TX to 100BASE-FX Media Converters (LMC213A-MMST-R2 etc.) FlexPoint Token Ring UTP to Fiber Media Converters (LTM215A) FlexPoint 10/100 Rate Converters (LMC100A-R2 etc.) FlexPoint Gigabit UTP to Fiber Media Converters (LMC1003A-R3 etc.) FlexPoint 100-Mbps Fiber to Fiber Converters (LMC252A-ST etc.) FlexPoint 1000-Mbps Fiber to Fiber Mode Converters (LMC1001A etc.) FlexPoint Fiber-to-Fiber Mode Converters for ATM OC-3 and OC-12 (LMC156A-ST etc.) FlexPoint T1/E1 Copper to Fiber Line Drivers (MT660A-MM etc.) FlexPoint RS-232 to Fiber Converters (ME660A-MST etc.) Questions? Contact our FREE Tech Support.

Specification

General
Device Type
Transceiver
Form Factor
Plug-in module
Networking
Connectivity Technology
Wired
Cabling Type
10Base-T, 10Base-2 (coax)
Data Link Protocol
10Mb LAN
Data Transfer Rate
10 Mbps
Status Indicators
Collision status, power, link OK, link/activity
Compliant Standards
IEEE 802.2
Expansion / Connectivity
Interfaces
1 x Ethernet 10Base-T - RJ-45 female - 1
Compatible Slots
1 x expansion slot
Connections
1 x network - Ethernet 10Base-2 - BNC male - 1
Compatibility Information
Designed For
Black Box FlexPoint
