RFQ

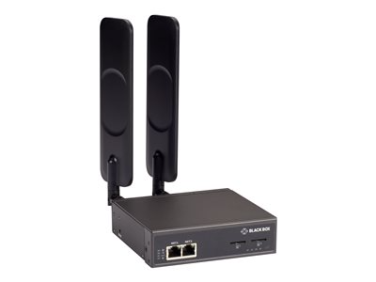

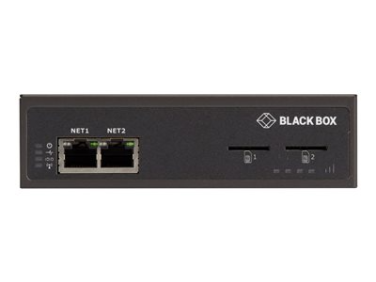

Black Box LES1604A-R-R2 - console server

  • NG # 03500-HW-BLACK-033

  • MF # LES1604A-R-R2

Manufactured By :
Black Box
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Tight budgets and sparse IT staffing make managing remote mission-critical IT, network, and power devices while meeting enterprise uptime requirements a challenge for IT managers. The solution is the LES1604A Console Server with an embedded 4G cellular modem and Cisco pinout. This highly reliable console server simplifies out-of-band management of your network, server, and power infrastructure in data centers and remote sites.

Specification

General
Device Type
Console server
Built-in Devices
Modem
Width
4.7 in
Depth
1.4 in
Height
5.1 in
Localization
United States, Rest of World
Processor / Memory / Storage
Processors Installed
1 x ARM ARMADA 370 800 MHz
Max Supported Qty
1
RAM
256 MB DDR3 SDRAM
Flash Memory
32 MB
Networking
Form Factor
External
Ports Qty
4
Connectivity Technology
Wired
Data Link Protocol
RS-232
Network / Transport Protocol
NTP
Remote Management Protocol
SNMP, SSH
Features
LLDP support, IP Security (IPSec) support, Zero-touch provisioning (ZTP), Virtual Central Management System (VCMS)
Encryption Algorithm
AES, SSL, FIPS 140-2
Authentication Method
Kerberos, Secure Shell (SSH), RADIUS, TACACS+, LDAP, Active Directory
Compliant Standards
IEEE 802.1ab (LLDP)
Communications
Mobile Broadband Access
Yes
Cellular Protocol
LTE
Expansion / Connectivity

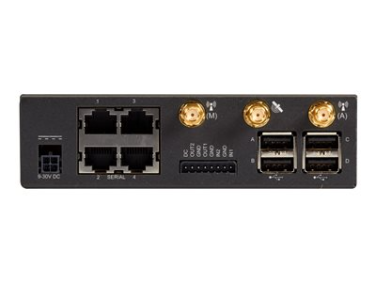

Interfaces
4 x RS-232 - RJ-45 ¦ 2 x 1000Base-T - RJ-45 ¦ 4 x management (USB)
Miscellaneous

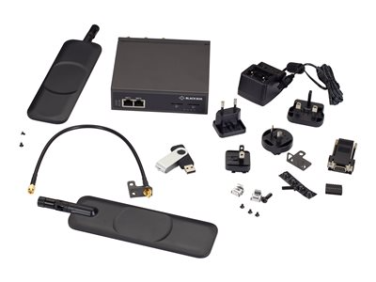

Included Accessories
4 rubber feet, rack mount kit
Cables Included
1 x serial adapter
Compliant Standards
TUV, C-Tick, UL 1950, FCC Part 15 B, CCC, RoHS, FIPS 140-2, IEC 61000-3-3:2008, EN 61000-3-2:2006+A2:2009, EN 61000-4-2:2009, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004, CISPR 24:2010, EN 55024:2010, EN 61000-4-8:2010, EN 55022:2010, AS/NZS CISPR22:2009+A1:2010, CISPR 22:2008, ICES-003 issue 5, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010
Power
Power Device
External power adapter
Voltage Required
AC 120/230 V
Power Consumption Operational
11.5 Watt
Environmental Parameters
Min Operating Temperature
-13 °F
Max Operating Temperature
140 °F
Humidity Range Operating
5 - 90%
