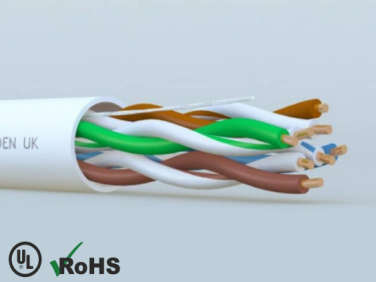

Norden Category 5E UTP cables are high-quality, UL-listed CM network cables tested up to 100 MHz, supporting Gigabit 1000Base-T applications up to 100 meters. Designed for superior performance, they exceed ANSI/TIA-568.2-D standards for NEXT, Power Sum NEXT, and Insertion Loss, ensuring reliable data transmission and long-term durability.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe Norden Cat 5E UTP cable is engineered for stable, high-speed network connectivity in professional installations. It surpasses the Category 5E/Class D performance requirements, offering enhanced signal integrity and minimal interference across the full 100 MHz bandwidth. Ideal for structured cabling systems, this cable supports Gigabit Ethernet (1000Base-T) up to 100m and is available in 305m easy-pull boxes for convenient installation. Manufactured using premium materials and stringent quality control, Norden cables provide exceptional performance margins and long-lasting reliability in both commercial and residential networks.
| Product Sequence | Premium |
| Product Type | Twisted Pair Cable |
| Conductor Material | Bare Copper |
| Conductor Size | 0.50 mm, 24 AWG |
| Conductor Construction | Solid |
| Insulation Material | High Density PE |
| Insulation Diameter | 0.88±0.2 mm |
| Conductor Unit Identification | Solid/Stripe |
| Rip Cord | Yes |
| Drain Wire | N/A |
| Colour Code. | Per TIA/EIA 568-B |
| Total Number of Wires | 8 |
| Outer Jacket | LSZH / PVC |
| Outer Jacket Thickness & Ex. Diameter | 0.50±0.05 mm, 5.0±0.3 mm |
| Outer Jacket Colour | Per Requirement |
| Marking | Per Requirement |
| Frequency Range | 1 - 100 MHz |
| Impedance | 10 Ω ±15 |
| Coupling Attenuation | 40 dB min @ 30-100 MHz |
| Max DC Resistance | 94 Ω/km @ 20 °C |
| Max. Resistance Unbalance | 5 % |
| Capacitance | 5.6 nF/100m max. |
| Capacitance Unbalance | 3.3 pF/m max. |
| Velocity Of Propagation | 69 % |
| Propagation Delay Skew | 25 ns/10m max. |
| Dielectric Strength | 1 KV/minute |
| Min. Insulation Resistance | 5 GΩ•km |
| Max. Tensile Strength - Short Term | 110 N |
| Min. Bend Radius | 40 mm |
| Operating Temperature Range | -30 °C +60 °C |
