Honeywell CIPer™ Model 30 Expansion Module

  • NG # 00924-HW-HNWEL-044

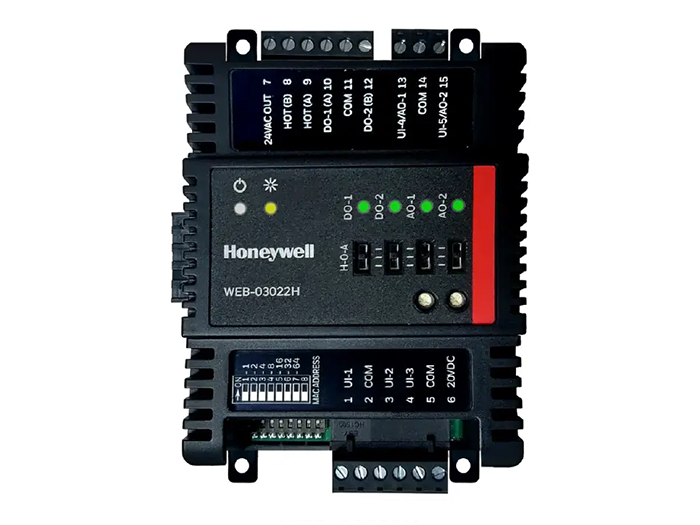

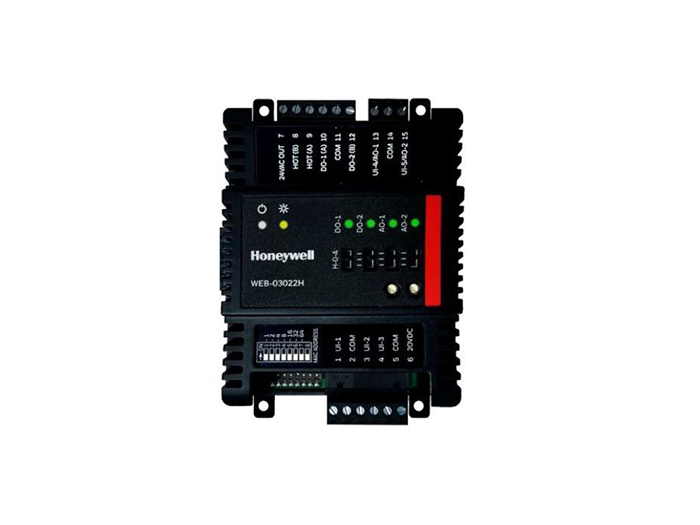

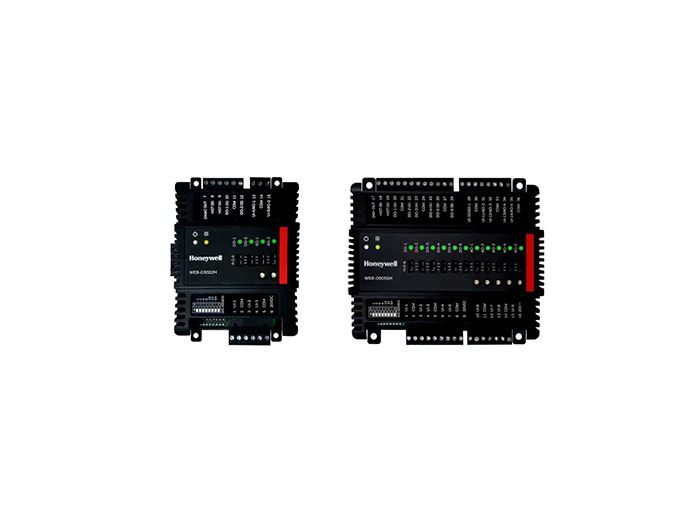

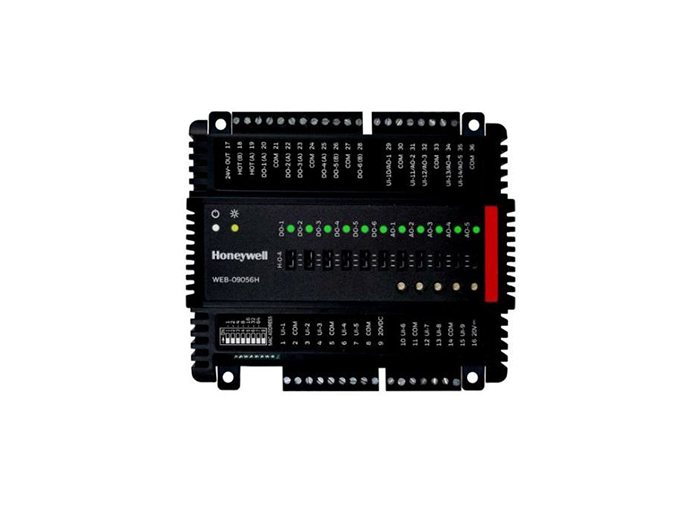

CIPer Model 30 small (7 I/O) and large (20 I/O) expansion modules

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

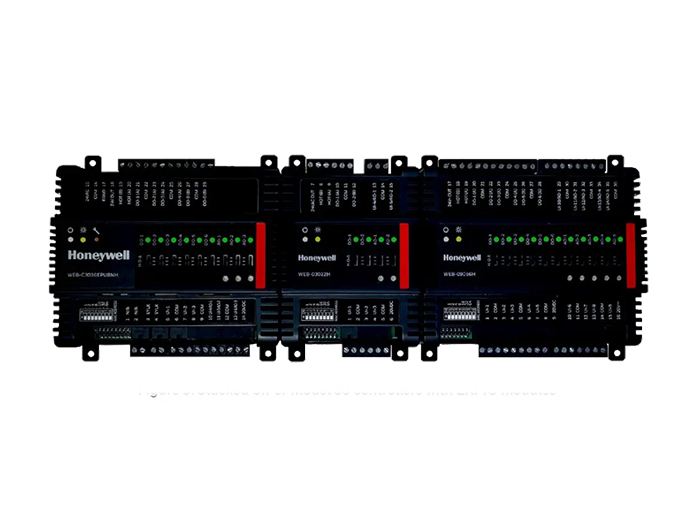

CIPer Model 30 Expansion modules provide addition I/O for CIPer Model 30 Controllers. Multiple expansion I/O modules can be connected to a single controller and different size modules can be mixed any combination to meet specific project I/O requirements.

Specification

Specification

  • Direct connect to the CIPer Model 30 Controller or remote mount up to100 ft away
  • Can be powered by the CIPer Model 30 Controller
  • All wiring connections are made to removable terminal blocks to simplify device installation and replacement.
  • Wide range of sensors supported sensors like 20KNTC, PT1000 and other resistive sensors.
  • Multiple Expansion I/O capability support. Refer to CIPer Model 30 technical documentation for more details.
  • 16-bit A/D conversion resolution for accurate measurement.
  • Indication LEDs for all Digital and Analog Outputs (DO & AO).
  • HOA (Hand-Off-Auto) switches on DOs and AOs. HOA are configurable and can be monitored.
  • Compact size for small installation housings.
  • Field configurable and programmable for control, input, and output functions using the Niagara Framework®based CIPer Model 30 programming tool.

CATALOGS

CIPer™ Model 30 Expansion Module Data Sheet
