3M DBI Sala E Maxi Clamp 4-Pack for Standing Seam Roof Top Anchor, Mfg# 7241206, 4-Pack Kit, Fits Double Folded Type Standing Seams.

NG # 0811-HW-3M-065
MF # 7241206

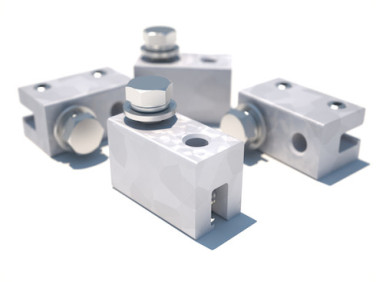

The 3M™ DBI-SALA® E Maxi-Clamp Kit (4-Pack) is a set of specialized non-penetrating clamps engineered to secure DBI-SALA standing seam roof anchors directly to double-folded metal roof profiles.

Manufactured By :

3M

Ask For Price

Stock

Need Help Ordering?

Call +88 01714243446

Custom Pricing

Get A Quote

Ask For Price

Need Help Ordering?

Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Designed specifically as an attachment interface for standing seam rooftop anchor posts and horizontal lifeline systems, the E Maxi-Clamp kit attaches to elevated roof seams without penetrating or puncturing the sheet metal. This specific "E" profile clamp is tailored to fit double-folded (double lock / Pittsburgh) standing seam profiles, clamping firmly via set bolts to deliver certified anchorage strength while preserving roof weatherproofing and structural warranties.

Specification

Specification	Details
Product Line	3M™ DBI-SALA® Rooftop Anchor Accessories
Component Type	E Maxi-Clamp Attachment Kit (4-Pack)
Compatible Seam Type	Double-Folded / Double-Lock Standing Seams ("E" Profile)
Package Quantity	4 Clamps per Kit
Material & Finish	High-strength extruded aluminum body with stainless steel hardware
Installation Method	Torqued set bolts (non-penetrating pressure clamp)
Working Load Capacity	310 lbs (141 kg) single user / Up to 5,000 lbs (22.2 kN) anchor assembly rating
Compatible Base Hardware	3M DBI-SALA Standing Seam Roof Anchor Base Post Assemblies
Standards & Compliance	ANSI Z359.18, OSHA 1910.66, OSHA 1926.502 (when assembled on approved roof profiles)
