Eaton Tripp Lite Series 5kVA 120V Stepdown Transformer - 18 NEMA 5-20R Outlets, 60 Hz, L6-30P Input, 3 ft. Cord, 3U Rack/Tower - transformer - 5000 VA

  • NG # 03932-HW-Eaton-025

  • MF # SUTFMR

Manufactured By :
Eaton
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

208V to 120V Isolation Transformer Converts High-Voltage Input to Low-Voltage Output

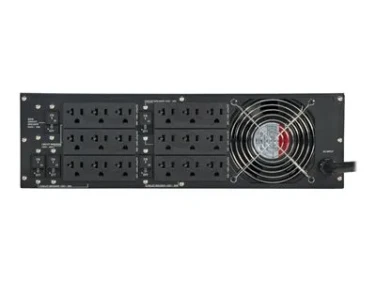

This 5kVA Stepdown Transformer converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features 18 NEMA 5-20R outlets (two sets of nine outlets) for connecting equipment with common NEMA 5-15P and NEMA 5-20P plugs. Resettable 20A circuit breakers protect your 120V equipment against overload conditions. The SUTFMR works with select 5kVA to 6kVA SmartOnline UPS systems.

Versatile Installation Options

You can mount the SUTFMR in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware. The three-foot power cord with L6-30P plug connects to a compatible AC outlet.

Specification

General
Device Type
Transformer - rack-mountable / external
Height (Rack Units)
3U
Rack Size
19"
Power Device
UPS Technology
On-line
Input Voltage
AC 200/208/220/230/240 V
Frequency Provided
50/60 Hz
Input Wiring
1-phase
Frequency Required
50/60 Hz
Input Connectors
1 x 1 x power NEMA L6-30P
Power Output Connectors Details
18 x power NEMA 5-20R - 120 V
Output Voltage
AC 120 V 50/60 Hz
Power Capacity
5000 VA
Circuit Protection
Circuit breaker
Miscellaneous
Included Accessories
Mounting hardware, 4-post rail kit
Cables Included
Power cable - integrated - 3 ft
Rack Mounting Kit
Included
Features
Metal housing
Compliant Standards
cUL Listed, NOM, RoHS
Sustainability Information
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
0 - 95% RH (non-condensing)
Dimensions & Weight
Width
17.3 in
Depth
25.4 in
Height
5.1 in
Weight
95 lbs
Compatibility Information
Designed For
P/N: SU5000RT, SU5000RTMB, SU6000RT, SU6000RT3UTAA, SU6000RTMB
