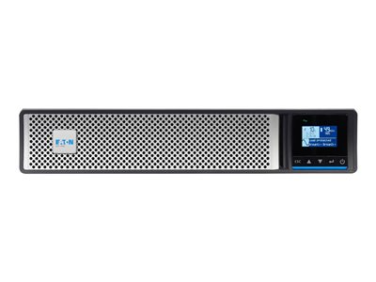

Eaton 5PX G2 - UPS - 1440 Watt - 1440 VA

  • NG # 03456-HW-Eaton-010

  • MF # 5PX1500RTG2

Manufactured By :
Eaton
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Eaton 5PX G2 1440VA 120V Line-Interactive UPS is designed to ensure reliable power protection and battery backup for critical devices. With a power capacity of 1440 watts and eight NEMA 5-15R output connectors, this UPS supports multiple connected devices, securing against power surges and interruptions. It features a maintenance-free, valve-regulated, sealed lead acid battery that provides longevity and minimal upkeep, while also delivering runtime capabilities of up to 15 minutes at half load.


Equipped with an LCD display for real-time monitoring, the Eaton 5PX G2 includes advanced battery management technology to optimize battery health and performance. The rack-mountable design allows for efficient space utilization, making it a perfect fit for various environments. Complied with multiple standards including ENERGY STAR, RoHS, and cULus, this UPS provides protection and supports energy conservation efforts.

Specification

General
Device Type
UPS - rack-mountable / external
Height (Rack Units)
2U
Color
Black, silver
Power Device
UPS Technology
Line interactive
Input Voltage
AC 120 V
Input Voltage Range
AC 100 - 125 V
Frequency Provided
50/60 Hz
Frequency Required
50/60 Hz
Input Connectors
1 x power NEMA 5-15P
Power Output Connectors Details
8 x power NEMA 5-15R
Output Voltage
AC 120 V 50/60 Hz
Power Capacity
1440 Watt / 1440 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
380 Joules
Efficiency
98%
Battery
Technology
Lead acid
Run Time (Up To)
5 min at full load ¦ 15 min at half load
Features
Sealed, maintenance free, valve-regulated
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x management (RS-232) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B
Expansion Slots
1 (total) / 1 (free) x expansion slot
Miscellaneous
Included Accessories
Tower stand
Cables Included
USB cable - external ¦ RS-232 cable - external ¦ Power cable 10 ft
Rack Mounting Kit
Included
Features
Advance Battery Management (ABM), LCD display, hot-swappable batteries, cold-start function
Compliant Standards
cULus, NOM, RoHS, REACH, IEC 62040-1
Sustainability Information
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
20 - 90% (non-condensing)
Dimensions & Weight
Width
17.2 in
Depth
17.6 in
Height
3.4 in
Weight
50.71 lbs
