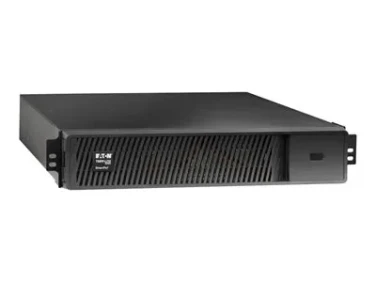

Eaton Tripp Lite Series 72V Extended Battery Module (EBM) for Select 2200VA and 3000VA SmartPro UPS Systems, 2U Rack/Tower, TAA - UPS battery - VRLA - TAA Compliant

  • NG # 03931-HW-Eaton-024

  • MF # BP72VRXLTAA

Manufactured By :
Eaton
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Backup Battery Module Gives Your Compatible UPS System Extended Runtime


The BP72VRXLTAA offers extended battery runtime when used in conjunction with certain Eaton Tripp Lite series 2200VA and 3000VA SmartPro UPS systems, such as the SMART2200RXLTAA and SMART3000RXLTAA. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.


Equipped with External Battery Auto-Detect


The automatic battery detection feature works with the connected UPS system to detect the EBM and automatically update runtimes.


Versatile Design Supports 2U Rack or Tower Installation


This VRLA battery pack's multi-use form factor supports mounting in 2U of space in EIA-standard 19-inch open frame racks or enclosures using the included 4-post rail kit and mounting brackets. Tower stands are also included for optional upright configuration.


TAA-Compliant for GSA Schedule Purchases


The BP72VRXLTAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Specification

General
Device Type
UPS battery - external
Height (Rack Units)
2U
Rack Size
19"
Battery
Technology
Valve regulated lead-acid (VRLA)
Voltage Provided
DC 72 V
Miscellaneous
Included Accessories
Tower stand, 4-post rail kit
Cables Included
Battery cable - external ¦ Auto-detection cable
Rack Mounting Kit
Included
Features
Daisy chaining support, power fail protection, single-phase
Compliant Standards
CAN/CSA C22.2, cTUVus, RoHS, UKCA, WEEE
TAA Compliant
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Dimensions & Weight
Width
17.2 in
Depth
23.7 in
Height
3.4 in
Weight
89.11 lbs
Compatibility Information
Designed For
P/N: SMART2200RXLTAA, SMART3000RXLTAA
