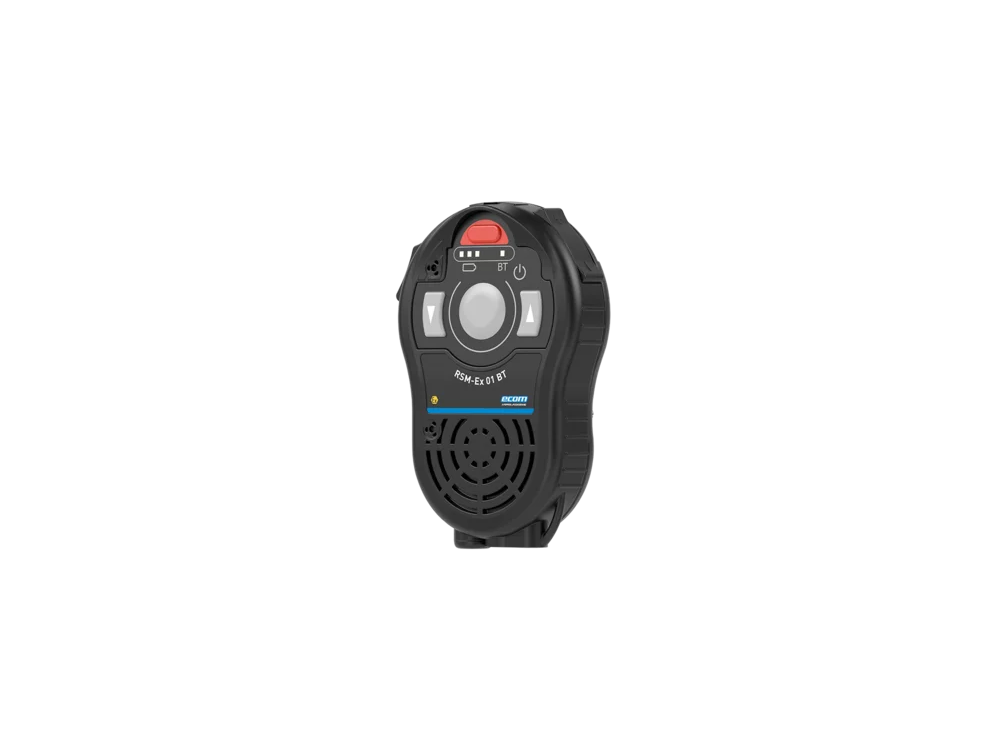

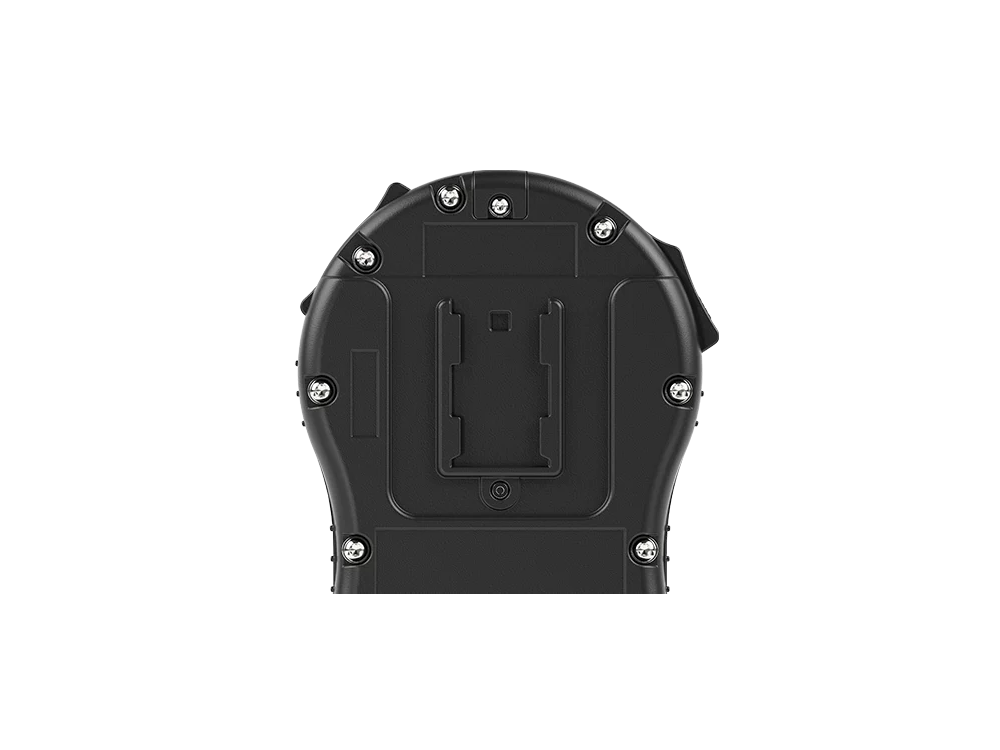

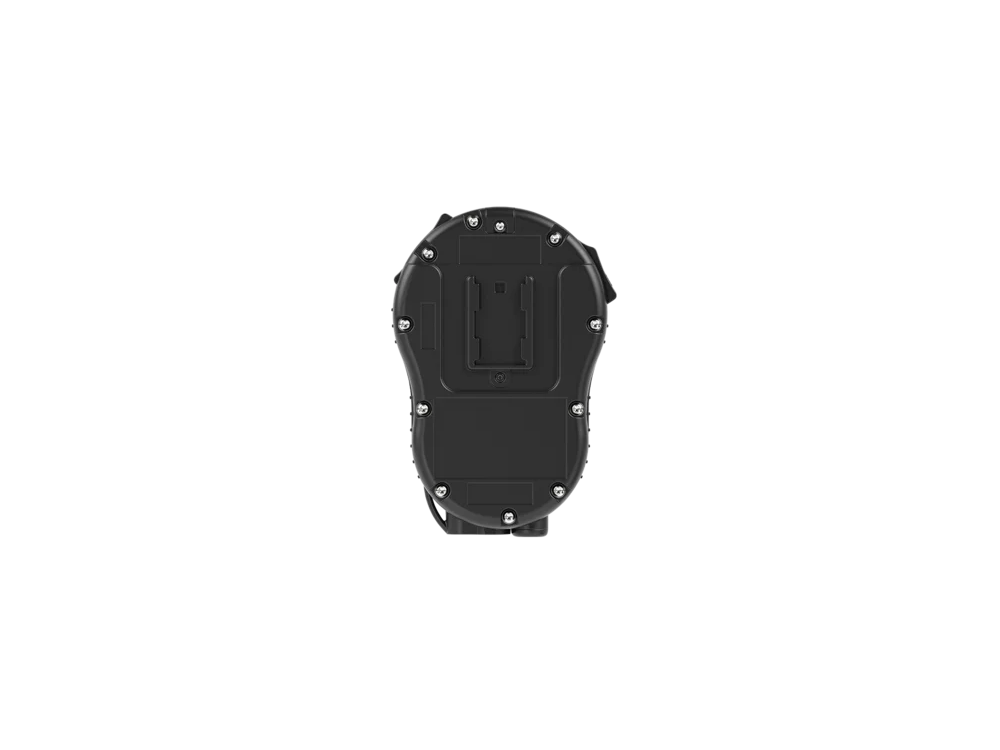

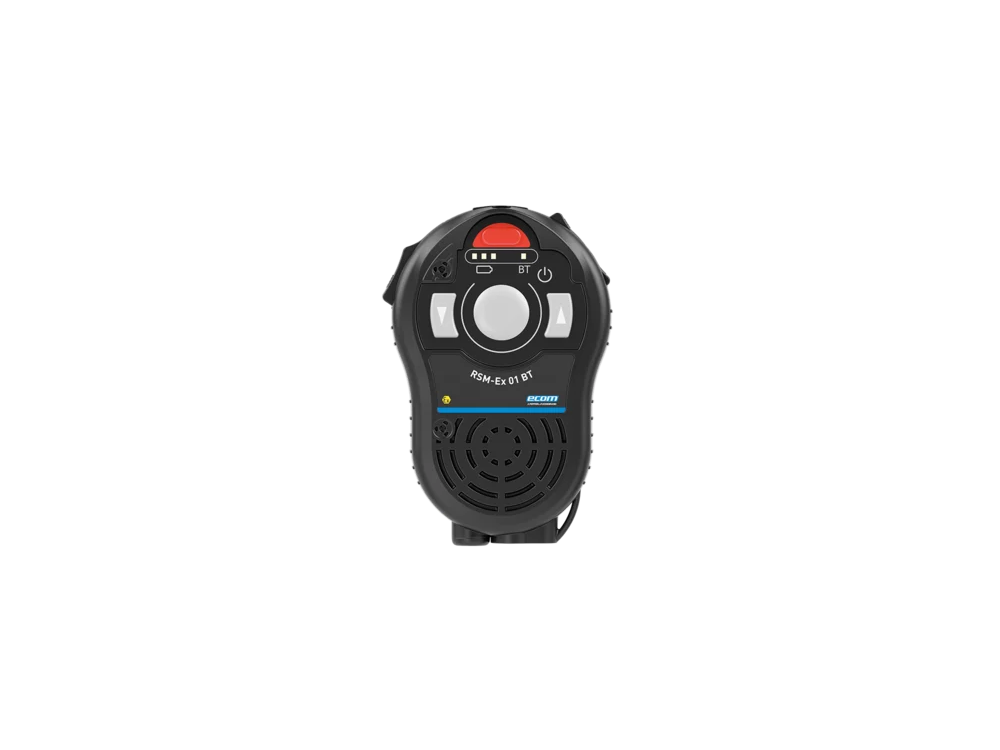

Ecom RSM-Ex 01 BT Z2 / D2 - Intrinsically safe Bluetooth Remote Speaker Microphone for NEC/CEC Division 2 & Zone 2/22

  • NG # 00414-HW-ECOM-015

The RSM-Ex 01 BT boasts an IP64 rating and features a built-in noise reduction function. Delivering clear, high-volume audio with a capacity of up to 103 dB, this device is user-friendly and intuitive, ensuring ease of operation even when wearing gloves.

Manufactured By :
ecom
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Enables communication with a Push-To-Talk device in hazardous areas and harsh environments.

Specification

Specification

LOUDSPEAKER PERFORMANCE Up to 103 dB
POWER SUPPLY Li-Ion 3.7 V
2200 mAh
COMMUNICATION
  • Bluetooth® 5.0
  • NFC
BUTTONS
  • PTT button operable with thick gloves
  • Front-facing multi-function button
  • Volume up / down
  • Channel up / down
  • On / Off
  • Red Button
RUN TIMES**
Use time in % with typical user profiles
Speak / Hear / Standby		 100%
(Level 15 Media; Level 8 Phone call)		 75%
(Level 10 Media; Level 4 Phone call)		 25%
(Level 3 Media; Level 2 Phone call)
5 / 5 / 90 -> 50 h -> 64 h -> 71 h
25 / 25 / 50 -> 22 h -> 44 h -> 64 h
50 / 50 / 0 -> 13 h -> 31 h -> 57 h
  **determined runtimes on the Smart-Ex® 02 based on RSM-Ex 01 BT software version 1.0.0
STANDBY TIME Approx. 74 hours
TEMPERATURE RANGE Ta = -20 … +60°C


IP RATING

IP 64 following EN/IEC 60079-0 (ATEX/ IECEx)
