Extra-Flat Inductive Proximity Sensor – IF201.P08S-F32.NC1Z.7BCV i

  • NG # 08440002-HW-BAUMER-002

Extra-Flat Inductive Proximity Sensor – IF201.P08S-F32.NC1Z.7BCV is designed for reliable flush metal detection in space-constrained industrial applications. Its compact rectangular housing, 8 mm sensing distance, NPN normally-closed output, IP67 protection, and robust nickel-plated brass construction provide stable performance in demanding environments.

Manufactured By :
Baumer
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Baumer IF201.P08S-F32.NC1Z.7BCV features an extra-flat, front-mountable design with a 20 mm dimension and 32 mm housing length. It operates from 6–36 VDC, provides a 200 mA NPN break-function output, and supports switching frequencies up to 500 Hz. End-of-line calibration helps minimize serial variation and maintain stable switching behavior. The sensor includes a red LED indicator, 2 m PVC cable, short-circuit and reverse-polarity protection, and IP67 protection for reliable industrial operation from -25 to +75°C.

Specification

Type: Inductive Proximity Sensor
Design: Rectangular, Flush
Sensing Distance: 8 mm
Output: NPN, NC
Supply Voltage: 6–36 VDC
Switching Frequency: 500 Hz
Output Current: 200 mA
Housing Material: Nickel-Plated Brass
Sensing Face: PBT
Connection: 2 m Cable
Protection: IP67
Operating Temperature: -25 to +75°C
Dimensions: 20 × 32 mm

Other Baumer Products

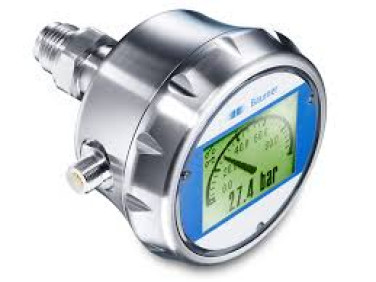

Hygienic Pressure Sensor – CombiPress PFMH-54
Baumer Industrial Tools & Accessories 08440008-HW-BAUMER-008

Inductive proximity sensor IR08.P02F-F40.NC1Z.7SCV
Baumer Industrial Tools & Accessories 08440003-HW-BAUMER-003

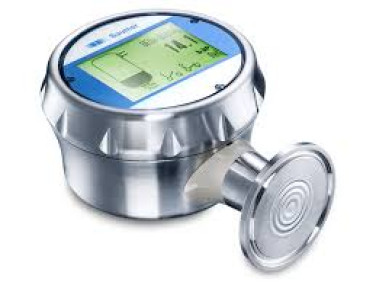

Hygienic Pressure Sensor – CombiPress PFMN-54
Baumer Industrial Tools & Accessories 08440009-HW-BAUMER-009

Absolute Multiturn Encoder – EAM300-BF6.5A4G.13120.A
Baumer Industrial Tools & Accessories 08440007-HW-BAUMER-007

Inductive Proximity Sensor – IR08.P02F-F40.NC1Z.7SCV
Baumer Industrial Tools & Accessories 08440004-HW-BAUMER-004

Inductive Proximity Sensor – I60.P01S-F20.NO1Z.7BCU
Baumer Industrial Tools & Accessories 08440001-HW-BAUMER-001

Mounting Rod – 250 mm
Baumer Industrial Tools & Accessories 08440006-HW-BAUMER-006

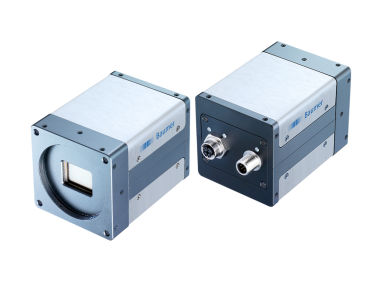

Industrial Camera – VQXT-120C.HS
