RFQ

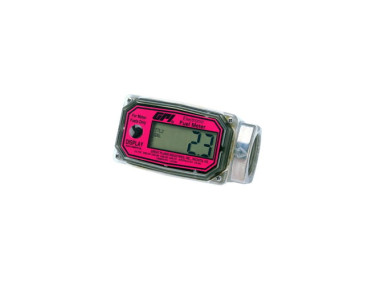

Flomec GPI 01A Series Fuel Meter

  • NG # 0743-HW-FLO-005

Aluminum turbine fuel totalizer.

Manufactured By :
Flomec GPI
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The GPI 01A Series fuel meter is a lightweight, accurate, and reliable turbine meter with rugged aluminum housing and sealed electronic circuitry. The GPI 01A Series fuel meter is powered by two AAA batteries that are easy to replace.

The GPI 01A Series fuel meter is factory calibrated for petroleum fuel with a choice of gallon and liter measurement. The GPI 01A Series fuel meter works well on any pump or gravity feed system with at least 3-30 GPM (10-100 LPM) flow range.

Wetted Materials
Housing: Aluminum
Bearings: Ceramic
Shaft: Tungsten Carbide
Rotor: Nylon
Signal Generators: Ferrite
Rings: 316 Stainless Steel

Specification


Turbine design1 inch fitting sizeNPT, ISO, or BSPP fitting type3-30 GPM flow range (totalizer only)Accuracy ±5.0% of reading300 PSIG pressure rating
