Flomec GPI A1 Turbine Flow Meter with Q9 Display

  • NG # 0742-HW-FLO-004

Flow range from 0.3 to 3 up to 30 to 300 GPM, self-contained, battery-powered units in aluminum or nylon.

Manufactured By :
Flomec GPI
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

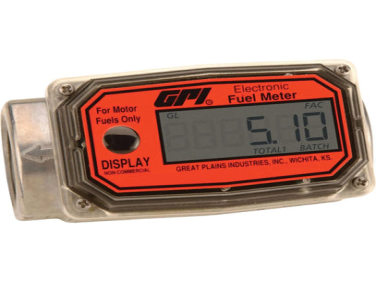

The Flomec GPI A1 turbine flow meter with Q9 display is a commercial grade electronic digital flow meter. The A1 turbine flow meter offers durable, compact, and high precision fluid measurement. This unique package combines the meter and the LCD into a self-contained and compact unit, making it an excellent choice for use even in the most remote locations.

Every GPI A1 turbine flow meter is equipped with a self-contained turbine or paddlewheel flow sensor, precisely matched to an integral battery-powered flow computer. The lightweight and compact design of the flow meter allows for vertical or horizontal installations in areas where other flow meters cannot be used.

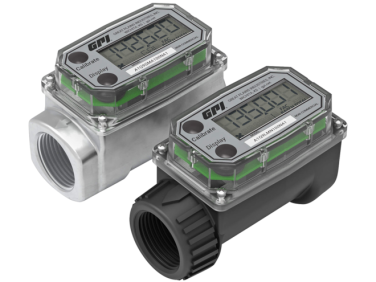

The GPI A1 turbine flow meter bodies are available in either nylon for water and other non-aggressive liquids or aluminum for fuel and other petroleum products. FM-approved as intrinsically safe, the A1 is perfectly suited for use in hazardous locations.

Flomec GPI A1 Turbine Flow Meter with Q9 Display Applications
Fuel transfer
Plant process water
Batching and blending
Fuel products (aluminum model)
Water and non-aggressive chemicals (nylon model)
Agricultural chemicals
Solvents and glycol
Chemical feed lines

Specification

  • Up to 300 GPM (1000 LPM)
  • Factory calibration in gallons and liters
  • Local display features
    • 2 totals (1 resettable, 1 cumulative)
    • Rate of flow
    • User configuration
  • Aluminum or nylon housing materials
  • Installs vertically or horizontally
  • 14 to 140°F operating temp with integral display
    • -40 to 250°F with remote assembly kit
  • Output capabilities available to communicate with process control equipment
  • 2-year alkaline battery life
