Handheld Code Reader HR-70 series

  • NG # 0563019-HW-KEYENCE-019

Handheld Code Reader – HR-70 Series is a rugged and high-speed scanning solution designed for reliable reading of 1D and 2D codes in industrial environments. With 640 × 480 pixel resolution, 2 m drop resistance, fast reading of challenging codes, and IP52 protection, it supports efficient daily code-reading operations.





Manufactured By :
Keyence
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Handheld Code Reader – HR-70 Series combines durable construction with fast and reliable code reading for manufacturing, logistics, and inventory applications. It can read challenging codes, including distorted, dirty, and codes behind plastic wrapping, while supporting a wide range of 1D and 2D formats. The rugged housing withstands 2 m drops and up to 20,000 repeated impacts, while the design supports more than 10 million trigger actions and 100,000 cable bends. USB and RS-232C connectivity, along with dedicated setup software, further simplifies integration and operation.

Specification

Type: Handheld Code Reader
Model: HR-70
Image Resolution: 640 × 480 pixels
Aimer Light Source: Red LED
Supported Codes: QR, MicroQR, DataMatrix, PDF417, CODE39, CODE128, JAN/EAN/UPC, and more
Minimum Resolution: 0.169 mm (2D Codes) / 0.127 mm (Barcodes)
Dimensions: 167 × 88 × 66 mm
Power Supply: 4.75–5.25 VDC
Current Consumption: Max. 360 mA
Protection Class: IP52
Ambient Temperature: 0 to 50°C
Relative Humidity: Max. 95% RH
Drop Resistance: 2.0 m
Material: PC + TPU
Weight: Approx. 160 g
Interface: RS-232C / USB, depending on cable model

Other Keyence Products

Compact Switching Power Supply MS2 series
Keyence Industrial Tools & Accessories 0563023-HW-KEYENCE-023

AI-Powered Code Reader SR-X series
Keyence Industrial Tools & Accessories 0563008-HW-KEYENCE-008

Handheld DPM Code Reader SR-G100 series
Keyence Industrial Tools & Accessories 0563018-HW-KEYENCE-018

High-Accuracy High-Speed Sensing Ionizer SJ-Q series
Keyence Industrial Tools & Accessories 0563020-HW-KEYENCE-020

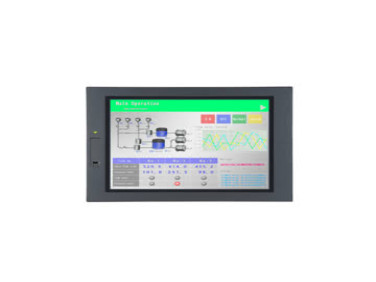

Touch Panel Display VT5 series
