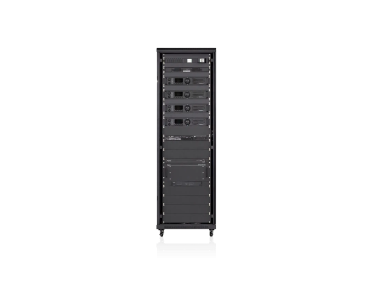

Hytera DS-6211 DMR Trunking Lite Base Station

  • NG # 03720-HW-HYT-041

Hytera DS-6211 DMR Trunking Lite Base Station is a digital trunking base station based on ETSI open standard DMR Tier 3.The focus is on transportation, energy resource, public utilities, public safety, etc.

Manufactured By :
Hytera
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

With advanced design, Hytera DMR Trunking Lite Base Station is provided with special features such as smooth migration, flexible networking and rich functionalities.

Specification



System Performance
Subscriber Capacity per MSO10000
Max. Number of Memberships1000000
Max. Number of Interconnected MSOs≤128
MS Capacity per BS500
BS Specificaition
Standard CompliancePDT/DMR
Frequency RangeUHF1：400-470MHz;UHF2：450-520MHz;UHF3：330-400MHz;VHF：136-174MHz
Carrier Capacity1-8 carriers（Maximum up to 24 carriers）
Power SupplyDC 48V; AC 220V
Clock SynchronizationGPS/PTP
Operating TemperatureExtreme: –30 to +60°C; Normal: 15 to 35°C
Storage Temperature–40°C to +85°C
Receiver
RX Sensitivity(Static)-118dBm@BER≤5%
Transmitter
Adjust Power Range5W - 100 W
