NG # 03713-HW-HYT-034

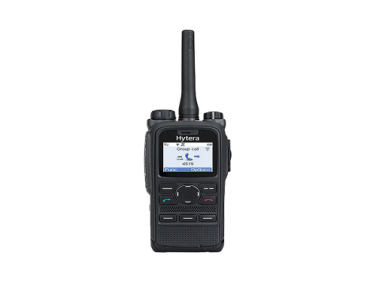

PT560H Mission Critical TETRA Portable Radio is engineered for top performance in harsh conditions.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteWith its advanced noise canceling technology and 3-watt high-power design, PT560H delivers clear voice calls amid noises across a wide range. It is available in four different versions, including basic, advanced, professional, and tamper-proof version, to serve specific work scenarios.
| General | |
|---|---|
| Frequency Range | 380-430 MHZ |
| Dimensions(H×W×D) mm | 127.5 mm × 55 mm × 36.5 mm |
| Weight | 368g（with 1800 mAh standard battery and antenna） |
| Operating Voltage | 7.4 V |
| Battery | Standard: 1800 mAh Battery;Optional: 2500 mAh Battery |
| Battery Life (TMO 5/5/90 duty cycle) | >20 H（1800 mAh）; >27 H（2500 mAh） |
| User Interface | |
| Display | 1.8 inch，160*128 pixels，262144 colors |
| Talk Group-TMO | 6000 |
| Talk Group-DMO | 4000 |
| Telephone book | 2000 |
| Inbox | 400 |
| Outbox | 50 |
| State Message | 200 |
| RF Specifications | |
| Channel Bandwidth | 25 kHz |
| RF Power Output | 3 W |
| RF Power Level Accuracy | ±2 dB |
| RF Power Control | 5 dB per step, 5 levels and 4 steps in total |
| Receiver Class | ETSI EN 392-2/396-2 Class A and Class B |
| RX Sensitivity(Static) | ≤-116 dBm（typical-118 dBm） |
| RX Sensitivity(Dynamic) | ≤-107 dBm（typical-109 dBm） |
| Audio Power Output | 2 W(Max: 3 W) |
| GPS Specifications | |
| RX Sensitivity | Acquisition sensitivity: -146 dBm; Tracking sensitivity: -165 dBm |
| Horizontal Position Accuracy | ≤2.5 m (50% probable -130 dBm） |
| Cold Start (Time to First Fix) | <35 s |
| Hot Start (Time to First Fix) | <1 s |
| Note | Conditions: Open Sky environment, 130 dBm signal strength, 24 H static |
| Environmental | |
| Operating Temperature | -30℃ ~ +60℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Dust & Water Protection | IP65/66/67/68 Per IEC60529 |
| Humidity | ETS 300-019-1-7 Class 7.3E; MIL-STD-810 G |
| Vibration,Drop&Shock | ETS 300-019-1-7 Class 5M3; MIL-STD-810 G; GJB150A-2009 |
