Iridium Extreme Vehicle & Marine Docking Station with RJ-11 - Advanced docking terminal

  • NG # 03222-HW-Iridium-021

  • MF # SATT-9575VM

Manufactured By :
Iridium
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

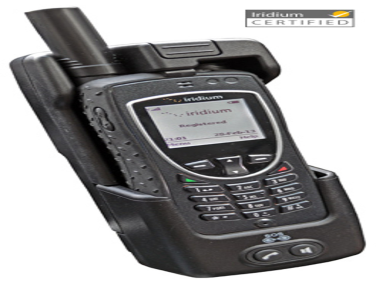

Iridium Extreme Docking Station enables using the Iridium Extreme satellite phone in all types of vehicles: cars, trucks, boats, yachts, ships, and aircraft. This Iridium docking station greatly improves availability of the Iridium satellite service on the go.

Specification

FEATURES:

  • Full duplex hands-free operation of Iridium Extreme phones
  • Support of Iridium location-based services
  • RJ-11 support: make satellite calls with regular phones or integrate into your PBX
  • Direct data pass through via mini-USB data port (no additional PC drivers needed)
  • Compatible with Iridium AxcessPoint Wi-Fi accessory and GMN xWA-102 Optimizer
  • Two-mode operation: hands-free or private mode (via optional handset or RJ-11telephone set)
  • Perfect voice reproduction and echo cancellation
  • Automatic adjustment to noise conditions
  • Mutes car stereo when calling
  • One-push Emergency (SOS) alert function
  • Microphone mute feature
  • 2.5mm (3/32") audio jack for a handset or earpiece
  • Charges phone battery
  • Two-year worldwide warranty
  • Certified by Iridium for use on its network


SPECIFICATIONS:

  • Operating temperature: -13...176° F (-25...80° C)
  • Input power: 10—30V DC, max 2A

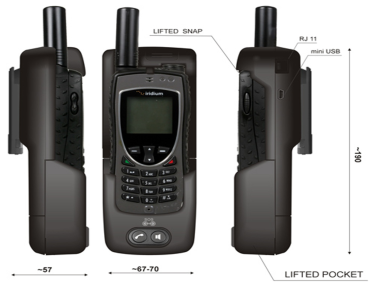

  • Height: 7.5 in. (190 mm) - cradle
  • Width: 2.76 in. (70 mm) - cradle
  • Depth: 2.3 in. (57 mm) - cradle
  • Weight: 2 lbs (0.9 kg) - retail box
  • Compatibility: Iridium Extreme (9575)
  • Ports: 1) RJ-11 (telephone), 2) mini-USB (data), 3) TNC-female (antenna)
