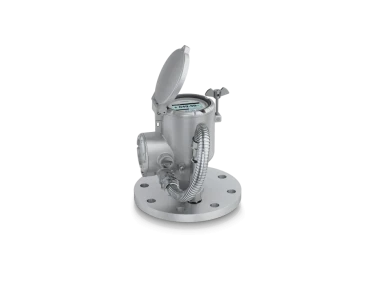

krohne OPTIWAVE-M 7500 Radar level transmitter

  • NG # 04004-HW-KROHNE-038

The OPTIWAVE-M 7500 is a highly accurate and reliable 2-wire 80 GHz radar (FMCW) level transmitter for measuring ullage. Equipped with a heavy-duty stainless steel housing, this marine level radar is designed to withstand the roughest conditions on deck.

Manufactured By :
KROHNE
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Due to its flush-mounted PEEK Lens antenna with a very small beam angle, this FMCW radar is the optimal choice for continuous, non-contact level measurement involving narrow small or high tanks with internal obstructions. Insensitive to deposits or corrosive environments, this marine level transmitter is equally suited for oil or other liquids, slurries and pastes as well as solids.

Specification

General information

Product typeLevel transmitter
Product family nameOPTIWAVE
Product positioningFor liquids and solids in the marine industry
Measurement variablesDistance, Level, Mass, Reflection, Volume
Measurement principleRadar (FMCW)
Level measurement typeContinuous measurement
Contact to measured mediumNo
Interface measurementNo
Measured mediaLiquids, Slurries, Pastes, Solids
Measuring range (liquids)0…40 m/
0…132 ft
Measuring range (solids)0…40 m/
0…132 ft
Ambient temperature-40...+70°C/
-40...+160°F
Measuring pointPressurised tank, Open tank, Silo, Bunker

Operating conditions

Process temperature

-40…+150°C/
-58…+302°F



optional:
-60...+250°C/
-75...+480°F

Materials

GasketsFluoroelastomer rubber (FKM/FPM), Kalrez® 6375
Wetted partsPolyetheretherketone (PEEK)

Process connections

Flange connectionsEN (1092-1): DN125


Approvals/Standards

Certificates/Approvals ExATEX, IECEx
Certificates/Approvals MarineABS, BV, CCS, DNV, GL, KR, LR, NK, RINA
Ingress protectionIP66/67

Communication

Analogue outputs4…20 mA
Digital outputsHART®

Accuracy

Accuracy (liquids)±2 mm/
±0.08 in
Accuracy (solids)±2 mm/
±0.08 in
