RFQ

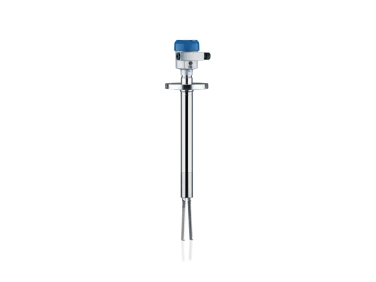

krohne OPTISWITCH 3300 Vibration level switch

  • NG # 03998-HW-KROHNE-032

The OPTISWITCH 3300 is a vibration level switch with tube extension for applications with bulk solids or powders. This robust level device detects the MIN or MAX levels of abrasive media and operates reliably even in applications with extremely low density. Its tube extension enables level detection in thick-walled silos or for a more flexible position of the switching point, e.g. in media that form a cone of bulk goods

Manufactured By :
KROHNE
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Vibration level switch with rigid extension for solid applications

Point level detection of solids

Probe length: up to 6 m / 20 ft

Density: <8 g/l / <0.49 lb/ft3

-50…+250°C; -1…16 barg

Specification

General information

Product typeLevel switch
Product family nameOPTISWITCH
Product positioningWith rigid extension for solid applications
Product variantsOPTISWITCH 3300 C: Compact housing
Measurement variablesLevel
Measurement principleVibrating
Level measurement typePoint level detection
Contact to measured mediumYes
Interface measurementNo
RedundancyNo
Measured mediaSolids, Bulk solids, Granulates, Powders
Probe length0.3…6 m/
1…20 ft
Measuring pointSilo

Operating conditions

Process pressure-1…16 barg/
-14.5…232 psig
Process temperature-50…+250°C/
-58…+482°F

Materials

GasketsEthylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM/FPM), Kalrez® 6375, PFA
Wetted partsAustenitic stainless steel (1.4404/316L)

Process connections

Flange connectionsEN (1092-1): DN50…200
ASME (B 16.5): 2…4
Thread connectionsMale:
G1 ½
1 ½ NPT
Hygienic connectionsTri-Clamp®: 2

Approvals/Standards

Certificates/Approvals ExATEX, EAC Ex, FM, CSA
Certificates/Approvals SafetySIL 2
Ingress protectionIP66/67, NEMA4/4X/6

Communication

Discrete outputs2-wire (8/16 mA), Contactless, NAMUR, Relay, Transistor
