NG # 04011-HW-KROHNE-045

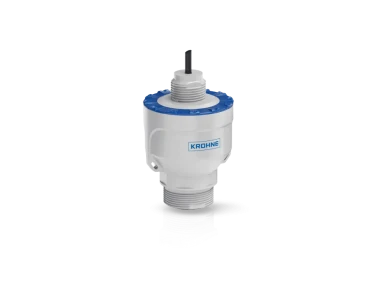

The OPTIWAVE 1520 is a 2-wire 80 GHz radar level transmitter for basic applications with liquids and solids. Its PVDF Lens antenna and compact housing make it particularly suitable for use in confined spaces as well as harsh process and environmental conditions such as outdoor applications, where a high degree of robustness is required. The level radar is therefore the ideal choice for cost-effective level measurement of sewage sludge and wastewater as well as treated water, e.g. in pumping stations, screw lifting stations or water basins.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteIt is equally designed for use in small silos with granulates such as sand or other products. The level transmitter is also available in an IP68-rated waterproof version, capable of withstanding heavy rainfall and flooding.
With its front-flush antenna design and its narrow beam angle, the cost-effective 80 GHz radar can also be used in small open tanks or pressurised vessels with internal obstructions where level measurement with dead zones is not an option. Due to its extremely high dynamic range, the OPTIWAVE 1520 is also able to provide reliable readings in the event of condensation or moving surfaces.
| Product type | Level transmitter |
| Product family name | OPTIWAVE |
| Product positioning | For basic liquid and solid applications |
| Product variants | OPTIWAVE 1520 - IP68 rated, without display |
| Measurement variables | Distance, Level, Reflection, Volume |
| Measurement principle | Radar (FMCW) |
| Level measurement type | Continuous measurement |
| Contact to measured medium | No |
| Interface measurement | No |
| Redundancy | No |
| Measured media | Liquids |
| Measuring range (liquids) | 0…10 m/ 0…32.8 ft |
| Ambient temperature | -25…+80°C/ -13…+176°F |
| Measuring point | Pressurised tank, Open tank, Open basin |
| Process pressure | -1...5 bar/ -14.5...72.5 psi |
| Process temperature | -25...+80°C/ -13…+176°F |
| Antenna | Polyvinylidene fluoride (PVDF) |
| Gaskets | Fluoroelastomer rubber (FKM/FPM) |
| Wetted parts | Polyvinylidene fluoride (PVDF), Fluoroelastomer rubber (FKM/FPM) |
| Thread connections | Male: G1½ 1½ NPT |
| Ingress protection | IP66/68 |
| Analogue outputs | 4…20 mA |
| Digital outputs | HART®, Bluetooth |
| Accuracy (liquids) | Max. measuring error:
Repeatability: |
