KROHNE DK32 Variable Area Flow Meter

  • NG # 02959-HW-KROHNE-014

Versatile, all-metal flow meters for liquid flow rates to 0.7 gpm and gas flow rates to 2.825 scfm.

Manufactured By :
KROHNE
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

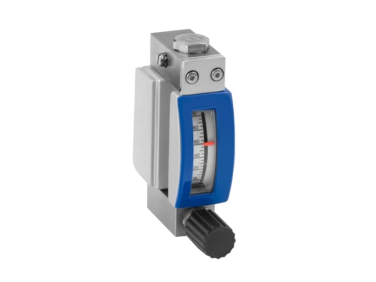

The KROHNE DK32 variable area flow meters are economical and versatile instruments designed to measure the flow of gases and liquids. Featuring a simple design that requires no auxiliary power, the DK32 is ideal for applications such as fine metering, gas chromatography, and minimum level monitoring and control.


KROHNE DK32 variable area flow meters feature horizontal connections and a standard metering valve in the foot or head of the device. The meters can be directly connected to a differential pressure regulator in order to ensure constant flow in the event of fluctuating operating pressure.


The KROHNE DK32 variable area flowmeters feature sturdy, all-metal design ensuring high resistance to pressure, temperature and media while standing up to extreme application and environmental conditions. The meters utilize simple float technology in which the position of the float is magnetically transmitted to an analog indicator to display the measured value. The DK32 are ATEX and FM approved for hazardous areas.

Specification

  • Upper limit of measurement for liquids: 0.007 to 0.7 gpm
  • Upper limit of measurement for gases: 0.009 to 2.825 scfm
  • Accuracy: ±4.0% of measured value
  • Process temperatures from -112°F to +302°F
  • Operating pressure up to 130 bar
  • Local indication without auxiliary power
  • Rugged, all-metal construction
  • 2 limit switches
  • SIL 2 compliant acc. IEC61508
  • Approved for hazardous areas in accordance with ATEX, FM, NEPSI
  • Many different process connections
  • Optional differential pressure regulators ensure constant flow
