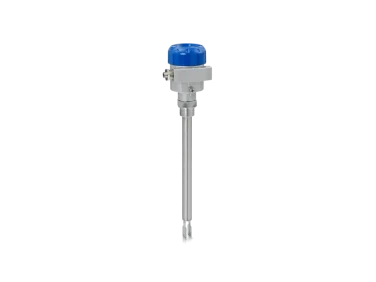

krohne OPTISWITCH 5200 Vibration level switch

  • NG # 03993-HW-KROHNE-027

The OPTISWITCH 5200 is a vibration level switch with rigid probe extension. It is a universal device for liquid applications and designed for liquid level detection in vessels. The level switch is mostly used for overfill, dry-run or pump protection.

Manufactured By :
KROHNE
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Vibration level switch with rigid extension for process applications
Point level detection of liquids
Probe length up to 6000 mm / 236"
Density: ≥0.5 g/cm3 / 0.018 lb/in3
-50…+250°C / -58…+482°F; -1…64 barg / -14.5…925 psig

Specification

General information

Product typeLevel switch
Product family nameOPTISWITCH
Product positioningWith rigid extension for process applications
Product variantsOPTISWITCH 5200 C: Compact housing
Measurement variablesLevel
Measurement principleVibrating
Level measurement typePoint level detection
Contact to measured mediumYes
Interface measurementNo
RedundancyNo
Measured mediaLiquids
Probe length80…6000 mm/
3…236 in
Measuring pointPressurised tank, Open tank, Open channel, Basin

Operating conditions

Process pressure-1…64 barg/
-14.5…925 psig
Process temperature-50…+250°C/
-58…+482°F

Materials

GasketsEthylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM/FPM), Kalrez® 6375, PFA
Wetted partsAustenitic stainless steel (1.4404/316L), Austenitic alloy (2.4610/alloy C4), Ethylene ChloroTriFluoroEthylene (ECTFE), Enamel, Perfluoroalkoxy alkane (PFA)

Process connections

Flange connectionsEN (1092-1): DN25…150
ASME (B 16.5): 1…6
Thread connectionsMale:
G¾, G1
¾ NPT, 1 NPT, 1 ½ NPT, 2 NPT

Approvals/Standards

Certificates/Approvals OthersWHG
Certificates/Approvals ExATEX, EAC Ex, FM, CSA
Certificates/Approvals MarineGL, LR
Certificates/Approvals SafetySIL 2
Ingress protectionIP66/67, NEMA4/4X/6

Communication

Discrete outputs2-wire (8/16 mA), Contactless, NAMUR, Relay, Transistor
