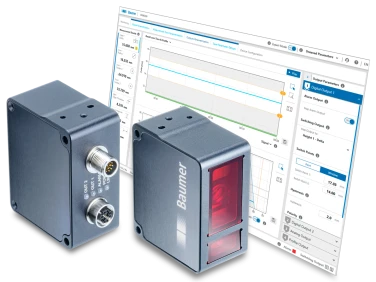

OE40.F22-YIN Edge Sensor

  • NG # 024628-HW-BCID-028

OE40.F22-YIN Edge Sensor enables high-precision edge detection for opaque and transparent objects with up to 10 µm accuracy. Featuring multiple measurement modes, reflector foil mounting, and IO-Link contamination monitoring, it ensures reliable performance in advanced industrial measurement applications.





Manufactured By :
Baumer
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The OE40.F22-YIN Edge Sensor is designed for precise optical edge measurement in industrial automation systems. It supports multiple measurement functions including width, gap, and center detection for flexible application use. With IO-Link integration, it provides additional diagnostic data such as contamination status. Its reflector foil-based mounting and high-resolution sensing up to 10 µm ensure stable and accurate measurement of both opaque and transparent materials.



Specification

Type: Optical edge sensor (performance long-range type)
Measuring Range (Mr): 22 mm
Measuring Distance (to object): up to 200 mm
Repeat Accuracy: up to 10 µm
Linearity Error: ±4.5% of measuring range (improves in mid-range)
Light Source: Pulsed infrared LED
Wavelength: 850 nm
Output Type: Analog (4–20 mA) + IO-Link digital
Interface: IO-Link V1.1.3
Response Time: < 1 ms
Measuring Frequency: > 1100 Hz
Supply Voltage: 12 … 28 VDC
Current Consumption: Max. 100 mA
Housing Type: Rectangular industrial sensor
Housing Material: Aluminum
Optical Front: Glass window
Dimensions: 34.8 × 71.2 × 16.8 mm
Connection Type: M8, 4-pin connector
Protection Class: IP67
Operating Temperature: 0 °C … +55 °C
Storage Temperature: -20 °C … +60 °C
