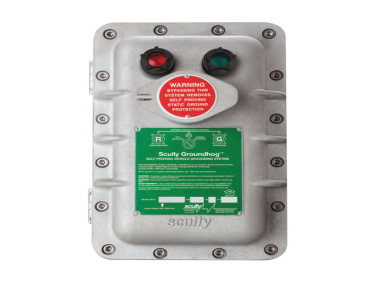

Scully ST-47-115 ELK/D Groundhog Static Ground Proving Control Monitor w/ Lamps, Key Protected Bypass Switch & Deadman Switch

  • NG # 03142-HW-SCULLY-010

  • MF # SC08749

Manufactured By :
Scully
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Scully's ST-47 Groundhog Static Ground Proving Control Unit can be used with a variety of loading operations including tank trucks, rail tank cars, aircraft refuelers and tanks to ensure that transport vehicles are properly tied to ground before and during the loading operation. These can operate in conjunction with the Scully Overfill Prevention System (ST-35® or ST-15) or as an independent ground verification unit.

Specification

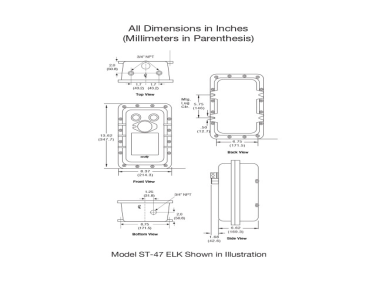

  • Model: ST-47-115 ELK/D
  • Operation Temperature: -40° to +140° F (-40° to +60° C)
  • Indicators: Red-not grounded/non-permit; Green-grounded/permit
  • Response Time: 0.5 seconds maximum
  • Electrical Connections: Internal terminal strips, identified for easy installation
  • Bypass Switch: Key lockable off-on bypass switch for ELK model only
  • Output Control: One normally open user contact rated 250, 5A resistive load
  • Power Requirements: ST-47-115 Models: 105-125 VAC, 50/60 Hz. 0.250 Amperes maximum
  • Approvals: Explosion-proof with intrinsically safe ground connection outputs. Rated for Class I, Division 1, Groups C & D Hazardous (Classified) Locations, by FM Global (FM) to Canadian and United States standards
