NG # 09440001-HW-SENSIRION-001

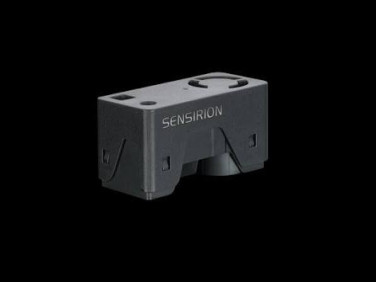

Sensirion SEN62 is a compact environmental sensing platform for monitoring particulate matter, temperature, and relative humidity. It measures PM1, PM2.5, PM4, PM10, temperature, and RH in one integrated module, simplifying air-quality monitoring and supporting efficient integration into HVAC, air purification, and indoor air quality systems.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe Sensirion SEN62 combines multiple environmental measurements in a compact sensing platform, providing reliable monitoring of particulate matter from PM1.0 to PM10, temperature, and relative humidity. It offers a particulate-matter range of 0–1000 µg/m³, ±10% mass-concentration precision, and a lifetime of more than 10 years. With I²C communication, 3.15–3.6 V supply, and a compact 55.2 × 25.6 × 21.3 mm form factor, the SEN62 enables straightforward integration into air-quality monitoring, HVAC, ventilation, and air-purification systems.
Type: Particulate Matter & Temperature/Humidity Sensor
PM Measurement: PM1.0, PM2.5, PM4, PM10
PM Range: 0–1000 µg/m³
PM Precision: ±10%
Temperature Accuracy: ±0.45°C
Humidity Accuracy: ±4.5%RH
Lifetime: >10 years
Interface: I²C
Supply Voltage: 3.15–3.6 V
Average Current: 80 mA
Dimensions: 55.2 × 25.6 × 21.3 mm
Sampling Interval: 1 s
Weight: 20 g ±10%
