CorDEX TC7150 Camera

  • NG # 00400-HW-COR-054

  • MF # 00400-HW-COR-054

  • SKU # 00400-HW-COR-054

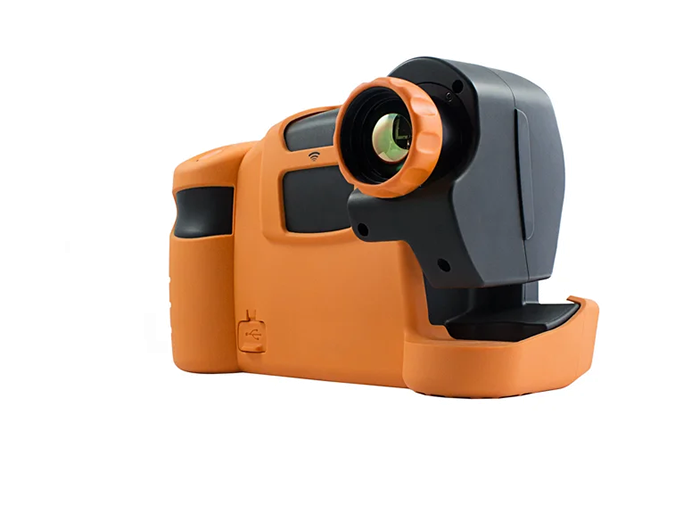

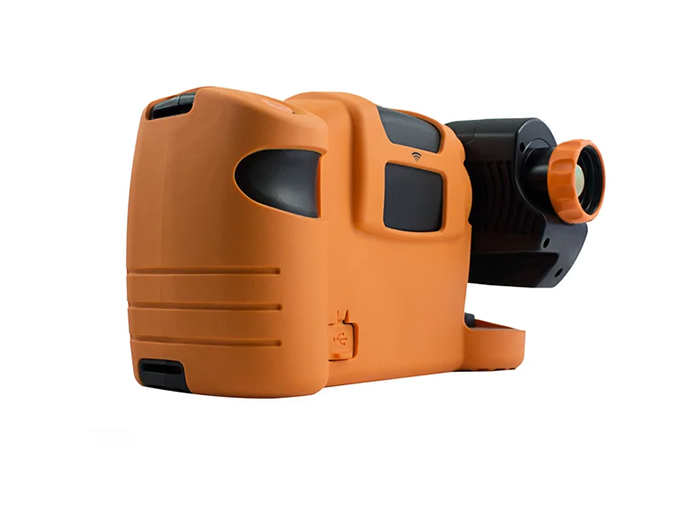

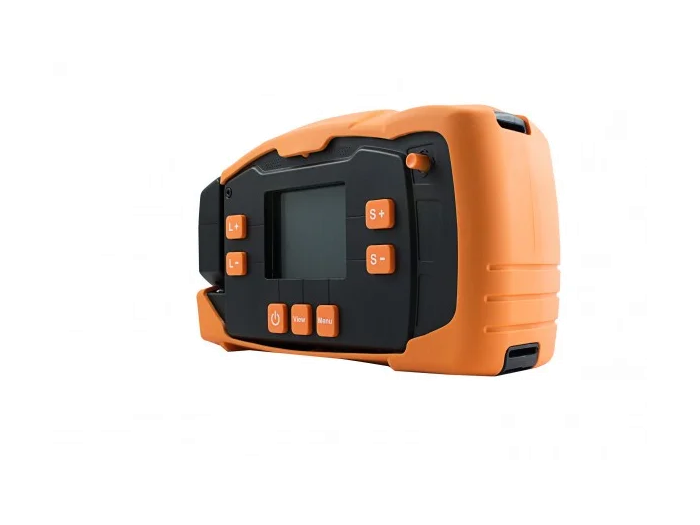

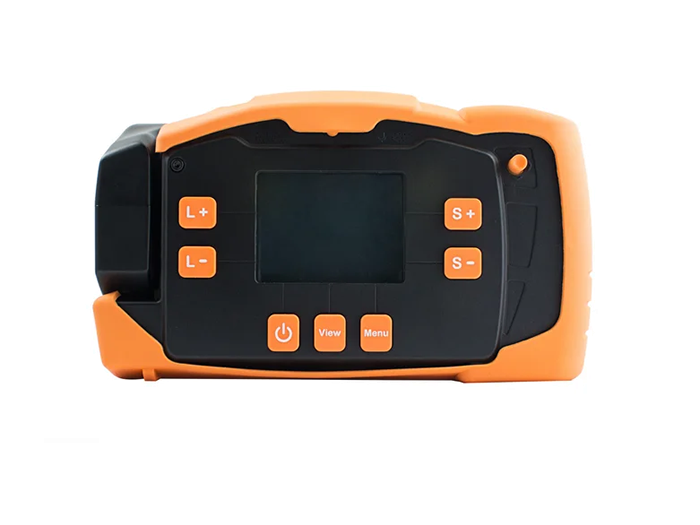

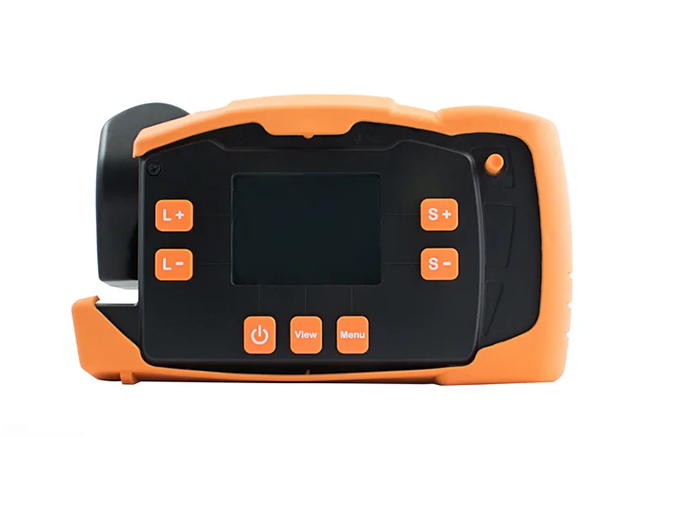

CorDEX TC7150 Intrinsically Safe Infrared Camera NRTL

Manufactured By :
CorDEX
Need Help Ordering?
Call +88 01714243446

Stock
Limited

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
Limited

Custom Pricing

Get A Quote

Overview

The TC7150 is a high performance 320 x 240 radiometric infrared camera which is NRTL Listed for Class I and II, Division 2, and Class III Hazardous (Classified) Locations. The TC7150 incorporates Radio Frequency Identification (RFID) scanning and image tagging for automatic database collation and reporting.

Specification

SPECIFICATIONS:

Certificate Information
MET Listing NoE113607
MET (North American) Certificate TypeClass 1, Division 2 Groups B,C,D
Temperature Information
Measurement Range-4°F to 1112°F (-20°C to +600°C )
Accuracy± 2°C or 2% of reading
Imaging
Image Frequency9Hz
Detector320 x 240 uncooled microbolometer
Thermal Sensitivity/NETD50mK
Spectral Range8μm to 14μm
Field of View (FOV)25° x 20.5°
Spatial resolution (IFOV)1.38 mrad
Minimum focus distance≈ 4” (10cm)
LensF 1.2
Image Capture
File Storage8GB
File FormatsCDX (Radiometric) JPEG (Non-radiometric)
Voice AnnotationYES
RFID Tag Reader• Operates with 13.54MHz passive tags
• Detection range up to 5cm (1.9in)
• SupportsISO/IEC15693-2,ISO/IEC18000-3 tag formats

CATALOGS

CorDEX TC7150 Camera Data Sheet
