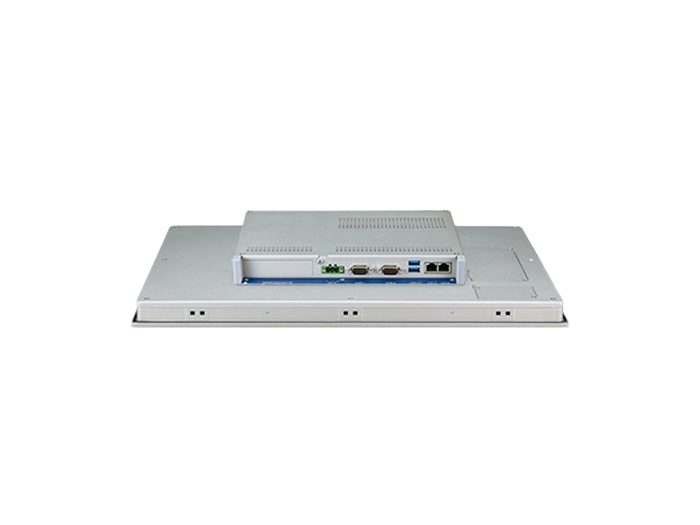

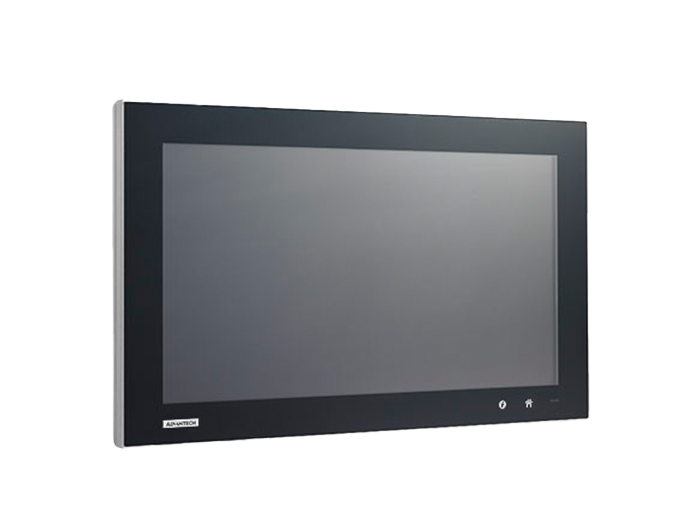

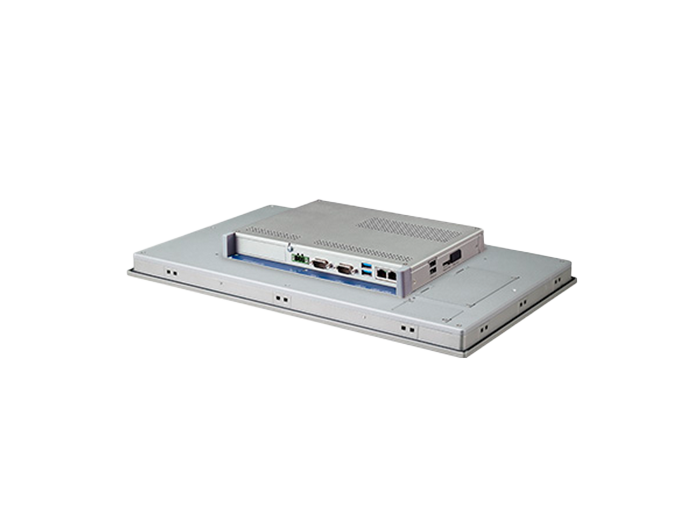

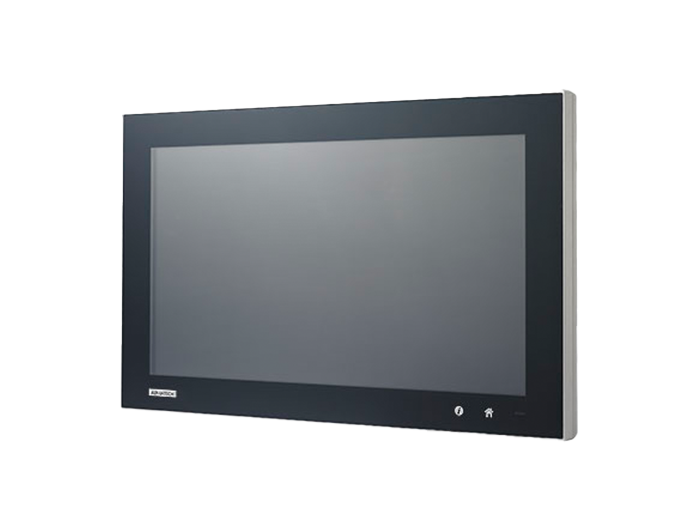

Advantech developed its TPC-5000 modular industrial panel PC with interchangeable display and computing modules that can be combined into various configurations for diverse applications. In addition to supporting Windows 7 and 10 operating system
Stock
Limited
Custom Pricing
Get A Quote
Stock
Limited
Custom Pricing
Get A QuoteThe TPC-5000 series is the first of Advantech’s TPC range of modularized industrial panel solutions. TPC-5000 series systems comprise a box module powered by a 6th Gen Intel®Core™/Celeron® processor combined with an industrial-grade LED LCD module, providing compact and fanless control panel solutions that support high-performance computing. Built to withstand diverse industrial environments, the TPC-5000 display modules feature an IP66-rated front panel for water and dust resistance, a scratch-resistant glass panel that supports projected capacitive or 5-wire resistive touch control, and a robust enclosure with die-cast aluminum alloy front bezel. Meanwhile, the TPC-5000 box modules feature MRAM and TPM 2.0 technology and 3 x LANs with surge protection and multiple fieldbus protocol support for increased data security and network connectivity. Designed for flexible expansion and easy maintenance, TPC-5000 series systems can also be integrated with optional iDoor and Wi-Fi/NFC modules for enhanced functionality.
Specification
| MANUFACTURER | Advantech | ||
| CPU FAMILY | Intel Celeron, Intel Core | ||
| BASE CPU SPEED | Under 2.0 Ghz, 2.1 to 3.0 GHz | ||
| RESOLUTION | 1024 x 768, 1280 x 1024, 1920 x 1080 | ||
| SCREEN SIZE | 10.1-15", 15.1-19", 20" and up | ||
| VIDEO OUTPUT | Display Port | ||
| LAN PORTS | 1-4 | ||
| PORTS | USB 2.0, USB 3.0 | ||
| MAX MEMORY | 16 GB, 32 GB | ||
| OPERATING SYSTEM | Windows 10, Linux | ||
| POWER INPUT VOLTAGE | 24 VDC +/- 20% | ||
| POWER CONSUMPTION | Typ. 41W; Max. 75W |
