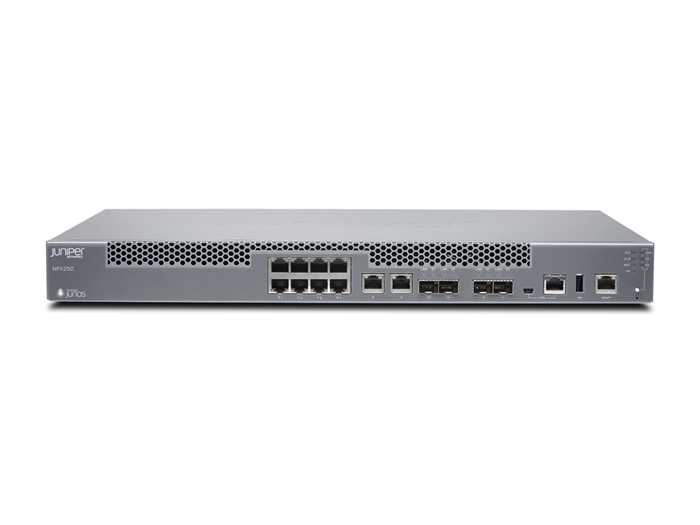

Juniper Networks NFX250 Network Services Platform - application accelerator

  • NG # 00115-HW-JI-011

  • MF # NFX250-S1

Juniper Networks NFX250 Network Services Platform - Application accelerator - front to back airflow - 1U - rack-mountable

Manufactured By :
Juniper Networks
Need Help Ordering?
Call +88 01714243446

Stock
10 in stock

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
10 in stock

Custom Pricing

Get A Quote

Overview

The Juniper Networks Cloud CPE solution allows users to create and deliver network services with agility at scale, enabling service providers to deliver innovative services from the data center or at the customer edge. While traditional customer premises equipment (CPE) devices have served the market well for years, they do not provide the flexibility and the scalability required for this agile deployment model. As a result, service providers typically employ diverse proprietary and closed platforms that inhibit innovation and complicate configuration, provisioning, and management.

Juniper Networks NFX250 Network Services Platform eliminates the challenges associated with deploying, managing, maintaining, and evolving CPE. Leveraging Network Functions Virtualization (NFV) and built on the Juniper Cloud CPE solution, the NFX250 allows service providers to deploy and service chain multiple, secure, high-performance virtual network functions (VNFs) in a single device. This automated, software-driven solution dynamically provisions services on demand, resulting in a near instantaneous service delivery experience. Subsequent service updates and policy changes can be dynamically inserted into the existing device, resulting in operational efficiency for service providers and enterprise customers alike by limiting or even eliminating service interruptions and business disruption.

Specification

Specifications
General
Device Type
Application accelerator
Height (Rack Units)
1U
Width
17.4 in
Depth
12 in
Height
1.7 in
Weight
9.48 lbs
Processor / Memory / Storage
Processors Installed
1 x Intel Xeon
Max Supported Qty
1
RAM
32 GB DDR4 SDRAM
Hard Drive
SSD 400 GB
Networking
Form Factor
Rack-mountable
Airflow Direction
Front to back airflow
Connectivity Technology
Wired
Network / Transport Protocol
TCP/IP, UDP/IP, DNS
Routing Protocol
OSPF, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, Bidirectional Forwarding Detection (BFD), CIDR
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Performance
Forwarding performance: 88 Gbps ¦ VNF capacity: 20 Gbps
Capacity
Maximum number of VNFs: 8 ¦ MAC addresses: 16000 ¦ Jumbo frame size: 9216 ¦ Virtual interfaces (VLANs): 4096 ¦ Active VLANs: 1024 ¦ MST instances: 64 ¦ ARP entries: 512 ¦ IPv4 routes (Unicast): 512 ¦ ACL entries: 1500 ¦ LAG groups: 32 ¦ Maximum member ports per LAG: 8 ¦ IGMP snooping entries: 1000
Features
Layer 3 switching, layer 2 switching, BOOTP support, RARP support, ARP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, High Availability, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, VLAN Stacking, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), IP Precedence, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DHCP proxy, Dynamic ARP Inspection (DAI), temperature sensor, Per-VLAN Spanning Tree Plus (PVST+), IPv4 support, DHCP relay, DHCP client, Management Information Base (MIB), Multicast VLAN Registration (MVR), Multiple VLAN Registration Protocol (MVRP), NTP time synchronization, Class of Service (CoS), Strict Priority (SP), tagged VLAN, DiffServ Code Point (DSCP) support, Smoothed Deficit Weighted Round Robin (SDWRR), system log, IP source guard, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Secure Copy (SCP), Management Information Base (MIB) II, Source-Specific Multicast (SSM)
Encryption Algorithm
MD5, TLS, PEAP, TTLS
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1ak
Expansion / Connectivity
Interfaces
8 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T - RJ-45 (WAN / LAN) ¦ 2 x 1000Base-X - SFP (mini-GBIC) (WAN) ¦ 2 x 10Gb Ethernet - SFP+ (WAN) ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x console - RJ-45 ¦ 1 x mini-USB ¦ 1 x USB 2.0 - Type A
Miscellaneous
MTBF
200,000 hours
Compliant Standards
TUV GS, CISPR 22 Class A, cUL, EN55024, CB, ICES-003 Class A, UL 60950-1 Second Edition, WEEE, RoHS, REACH, EN 60825-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V
Software / System Requirements
OS Provided
Wind River Linux 7
OS Required
JUNOS
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
122 °F
Humidity Range Operating
5 - 90% (non-condensing)
