RFQ

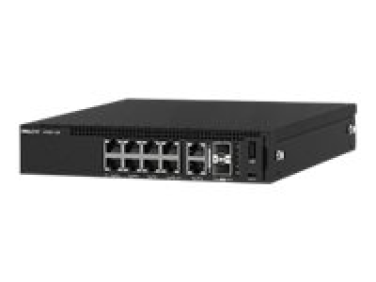

Dell - Networking N1108T-ON - switch - 8 ports - managed - rack-mountable

  • NG # 03616-HW-DELL-003

  • MF # TXTN6

Manufactured By :
DELL
Ask For Price

Stock
10 in stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
10 in stock

Custom Pricing

Get A Quote

Overview

The Dell Networking N1108T-ON switch is engineered to meet the demands of modern networks, offering robust security, high capacity, and versatile connectivity options. This switch is designed to facilitate efficient data flow and prioritization across the network, making it an ideal solution for businesses looking for a reliable and scalable networking solution. With advanced encryption algorithms like AES, SSL, and TLS 1.0, it ensures the security of sensitive data during transmission. The inclusion of 8 Gigabit LAN ports and 2 Gigabit SFP ports provides flexible connection options, catering to a variety of networking requirements. Additionally, its support for comprehensive management protocols allows for effective network management and monitoring, ensuring optimized performance. Built to comply with global standards and housed in a durable, rack-mountable form factor, the Dell Networking N1108T-ON is a testament to Dell's commitment to quality and reliability in networking technology.

Specification

General
Device Type
Switch - 8 ports - managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 + 2 x Gigabit SFP
Performance
Switching fabric bandwidth: 24 Gbps ¦ Forwarding performance: 18 Mpps
Capacity
MAC addresses: 16000 ¦ Aggregated links (dynamic): 144 ¦ LAG groups: 64 ¦ Queues per port: 8 ¦ VLANs supported: 512 ¦ ARP entries: 2048 ¦ NDP entries: 400 ¦ Max ACL rules system-wide: 4000 ¦ ACL: 100 ¦ Maximum ACL rules per interface (IPv4) ingress rules: 1023 ¦ Maximum ACL rules per interface (IPv4) egress rules: 1023 ¦ Maximum ACL rules per interface (IPv6) ingress rules: 1021 ¦ Maximum ACL rules per interface (IPv6) egress rules: 253
MAC Address Table Size
16000 entries
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP 2, SNMP, RMON, Telnet, HTTP, TFTP, SSH-2
Encryption Algorithm
AES, SSL, TLS 1.0
Authentication Method
RADIUS, TACACS+, LDAP
Features
Layer 2 switching, MDI/MDI-X switch, auto-negotiation, port mirroring, IP address filtering, Access Control List (ACL) support, Quality of Service (QoS), LLDP support, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), dual firmware images, redundant fans, MAC and IP-based ACLs support, Time-controlled ACLs support
Compliant Standards
IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3ax
RAM
1 GB
Flash Memory
1 GB
Expansion / Connectivity
Interfaces
8 x Gigabit LAN RJ-45 ¦ 2 x Gigabit LAN SFP ¦ 2 x Gigabit LAN RJ-45 management ¦ 1 x USB Type A ¦ 1 x micro-USB
Power
Power Device
Internal power supply
Installed Qty
1
Power Provided
24 Watt
Miscellaneous
Compliant Standards
FCC Class A certified, UL, cUL, GS, RoHS, WEEE, REACH, ICES Class A, NRTL, VCCI Class A, EAC, CCC Class A, FDA 21CFR1040.10, ACMA, FDA 21CFR1040.11, RCM Class A
Dimensions & Weight
Width
8.5 in
Depth
10 in
Height
1.8 in
Weight
3.53 lbs
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
113 °F
Humidity Range Operating
95%
Min Storage Temperature
-40 °F
Max Storage Temperature
149 °F
Humidity Range Storage
85%
