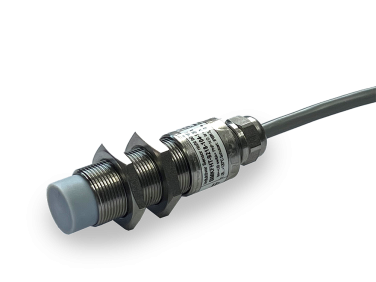

NG # 00100-HW-PEP-001
MF # NBB10-30GM50-WS
SKU # NBB10-30GM50-WS
Inductive sensors contains extensive expertise and supports users in the highly precise and smooth operation of the sensors in their machinery and plants. Several subsections explain function principles and technical relationships and offer practical application information.
Stock
Limited
Custom Pricing
Get A Quote
Stock
Limited
Custom Pricing
Get A QuoteInductive sensors are available in different versions. Depending on the application, different output types, connection types, materials, or designs may be necessary for effective use. Inductive sensors are affected by external influences such as electromagnetic fields, material influences, and the size of the objects being detected. Accordingly, the installation and ambient conditions and any normative requirements must be taken into account.
| Switching function | Normally open (NO) |
| Output type | Two-wire |
| Rated operating distance | 10 mm |
| Installation | flush |
| Output polarity | AC |
| Assured operating distance | 0 ... 8.1 mm |
| Actual operating distance | 9 ... 11 mm |
| Reduction factor rAl | 0.33 |
| Reduction factor rCu | 0.28 |
| Reduction factor r304 | 0.81 |
| Output type | 2-wire |
| Operating voltage | 20 ... 253 V |
| Switching frequency | 0 ... 20 Hz |
| Hysteresis | typ. 5 % |
| Reverse polarity protection | reverse polarity tolerant |
| Voltage drop | < 5 V (IL > 50 mA); < 8 V (IL < 50 mA) |
| Momentary current (20 ms, 0.1 Hz) | 0 ... 1600 mA |
| Operating current | 5 ... 200 mA |
| Off-state current | 0 ... 1.7 mA |
| Operating voltage indicator | LED, green |
| Switching state indicator | LED, yellow |
| Standards | EN 60947-5-2:2007, EN 60947-5-2/A1:2012, IEC 60947-5-2:2007, IEC 60947-5-2 AMD 1:2012 |
| UL approval | cULus Listed, General Purpose |
| CSA approval | cCSAus Listed, General Purpose |
| CCC approval | Certified by China Compulsory Certification (CCC) |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Connection type | cable PVC , 2 m |
| Core cross section | 0.75 mm2 |
| Housing material | brass, nickel-plated |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Cable diameter | 6.4 mm ± 0.2 mm |
| Bending radius | > 10 x cable diameter |
Inductive sensor NBB10-30GM50-WS Datasheet
Pepperl+Fuchs Laser light sensor VLE700-F280-B12-1200
Pepperl + Fuchs Inductive Block Proximity Sensor, 30 mm Detection, PNP NO, 10 → 30 V dc
Pepperl + Fuchs Inductive Block Proximity Sensor, 40 mm Detection, PNP NO, 10 → 30 V dc

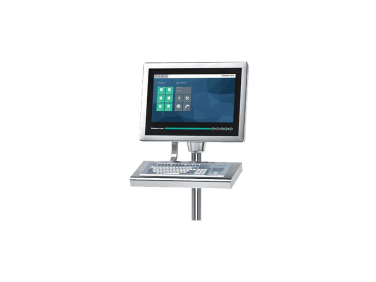

Pepperl+Fuchs VisuNet GXP PC Zone 1/21 (2020 Generation) PC-GXP1100-19S*
Pepperl + Fuchs Diffuse Photoelectric Sensor, Barrel Sensor, 0 → 300 mm Detection Range
Pepperl+Fuchs 3-D Time-of-Flight sensor VTE7500-F400-B12-A1500
Pepperl + Fuchs 1 Channel Zener Barrier, ATEX
Pepperl+Fuchs Capacitive proximity sensor
Inductive proximity switch VariKont series

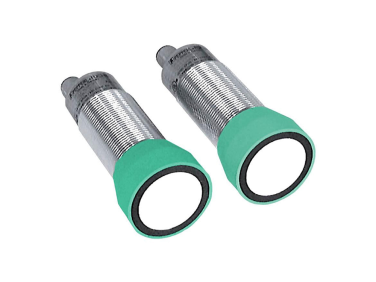

Pepperl+Fuchs Through-beam ultrasonic barrier UBE1000-18GM40-SE2-V1
Pepperl + Fuchs Retroreflective Photoelectric Sensor, Block Sensor, 0 → 5 m Detection Range IO-LINK
Pepperl + Fuchs CJ1W Series PLC I/O Module
Pepperl+Fuchs Magnetic proximity sensor
Pepperl+Fuchs Fiber optic photoelectric sensor
Pepperl+Fuchs Through-beam ultrasonic barrier UBE800-F77-SE2-V31

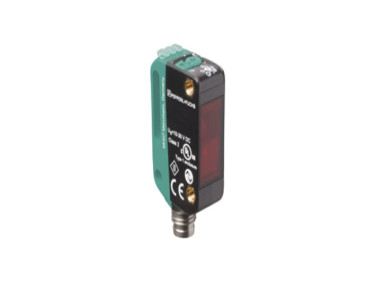

Pepperl + Fuchs Diffuse Photoelectric Sensor, Block Sensor, 0 → 2.5 m Detection Range

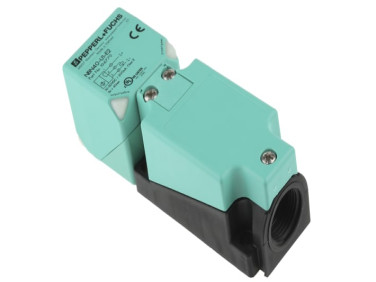

Pepperl + Fuchs Inductive Block Proximity Sensor, 40 mm Detection, 2-Wire NO/NC, 20 → 253 V ac, 20 → 300
