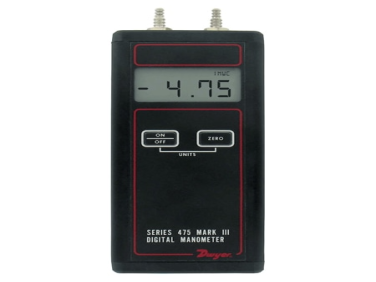

Series-475 Handheld Digital Manometer for Air/Gas Pressure, 1 inH2O to 150 psid

  • NG # 03345-HW-Omega-025

Manufactured By :
omega
Ask For Price

Stock
10 in stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
10 in stock

Custom Pricing

Get A Quote

Overview

The Series 475 Handheld Digital Manometer measures positive, negative, or differential pressures of air and natural gases in ranges from 1 in w.c. (0.249 kPa) to 150 psid (10.34 bar). The dual push pads on the front panel control the on/off, auto zero, and pressure unit selection, allowing for simple operation with no set up needed. When used with a Dwyer® Pitot tube, the Series 475 can also be used as an air velocity gage.


NIST CALIBRATION available in Product Configurator.

Specification

Service:
Air and compatible combustible gases.
Wetted Materials:
Consult factory.
Accuracy:
±0.5% FS, 60 to 78°F (15.6 to 25.6°C); ±1.5% FS from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40°C).
Pressure Hysteresis:
±0.1% of FS.
Pressure Limits:
See catalog page.
Temperature Limits:
0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits:
32 to 104°F (0 to 40°C).
Storage Temperature Limits:
-4 to 176°F (-20 to 80°C).
Display:
0.42" (10.6 mm) 4-digit LCD.
Resolution:
See Ordering page.
Power Requirements:
9 V alkaline battery, installed non-functional, user replaceable.
Process Connections:
Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) I.D. tubing. Two compression fittings for use with 1/8" (3.18 mm) I.D. x 1/4" (6.35 mm) O.D. tubing for 475-7 & 475-8 only.
Weight:
10.8 oz. (306 g).
Compliance:
CE, FM approved to Class I, Div 2, Groups A, B, C, D, T4 Ta = 70°C.
