DPG509 Advanced Digital Pressure Gauge
Stock
2
in stock
Custom Pricing
Get A Quote
Stock
2
in stock
Custom Pricing

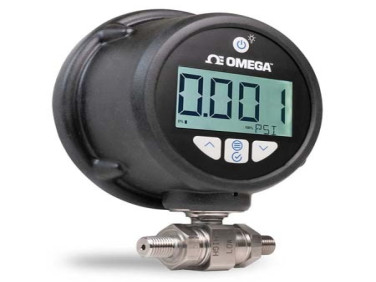

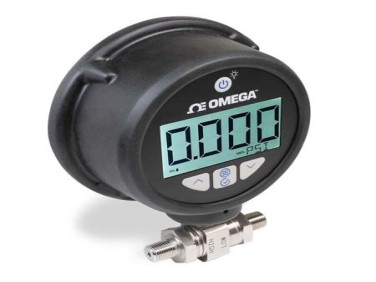

Get A QuoteDPG509 series is a digital pressure gauge designed with maximum functionality and usability. It has user-friendly interface with four clearly labeled buttons and a large 4-digit, backlit display. All options are built with an engineered thermoplastic housing with an IP65 rating for durability in harsh environments. A protective rubber boot is also an option for additional protection.
0 to 100psi pressure range Differential type 1/4" NPT male pressure port DC powered . ±0.08% accuracy Current or voltage of 4 to 20mA, 0 to 5VDC, 0 to 10VDC Data logging capability.
| Combined Accuracy | ±0.25% or ±0.08% Full Scale Span Options |
| Enclosure Material | PA12 Thermoplastic |
| Environmental Rating | IP65 |
| Operating Temperature | -18 to 54 °C (0 to 130°F) |

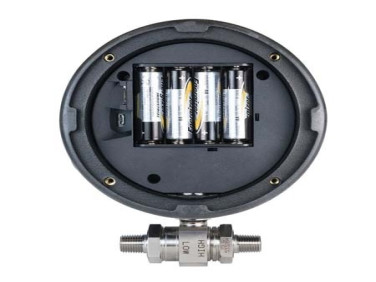

| Power Supply | 4 Alkaline AA Batteries for All Units, Optional External Power via M12 |
| Stability | ±0.3% Span/Year |
| Weight | 1.25 lbs |
| Calibration | NIST Traceable calibration is a configurable option (not standard) |
| Display Size | 4.95" (126mm) x 2.17" (55mm) |
| Enclosure Rotation | ± 150° |
| Minimum Resistance Between Transducer Body and any Wire | 100 MOhms @100 VDC |
| Over Pressure | 1.5 X Rated Pressure |
| Pressure Cycles | 1 million |
| Storage Temperature | -40 to 82°C (-40 to 180°F) |
| Wetted Parts | 316L SS, Viton Seal |
